Wheel-End Seals

Proven as a standard in the heavy duty industry, SKF Scotseal units are available in a range of designs suited to the varying customer application requirements.

The range begins with the SKF Scotseal Classic for normal severity. For higher sealing demands SKF Scotseal Longlife and SKF Scotseal Plus XL are the designs of choice.

All use a fully enclosed cassette design (unitized design) with specially developed elastomer materials and multiple sealing lip geometries to provide excellent life and reliability in the operating conditions they are designed for.

SKF Website

Product Highlights

Unitized design (seal and wear sleeve supplied as a non-separable unit)

Enhanced dirt exclusion

Specially formulated elastomeric materials, compatible with mineral and synthetic lubricants

Wide temperature ranges

Long service life – increased reliability

Top Movers - (Insert Product Name)

Item NumberPart DescriptionAttribute 1
CHR 47691SCOTSEAL PLUS4.750x6.308x1.035 ABS
CHR 47697OIL SEAL4.766 inId X6.316 inOd X 1.125 inWide
CHR 35058SEAL-OIL,FR STEER,SCOTSEAL PLU3.5 inId X 4.854 inOd X .903 inWide
CHR 35066SEAL- OIL,FR STEER,SCOTSEAL CL3.5 inId X 4.847 inOd X .904 inWide
CHR 46305SEAL4.625 inId X6.006 inOD X 1.063 inWide
CHR 46300SEAL-OIL,FR STEER,SCOTSEAL PLU4.625 inId X 6.014 inOd X .912 inWide
CHR 42627SCOTSEAL4.25 inId X 6.025 inOd X .971 inWide
CHR 38780SEAL3.875 inId X 5.696 inOd X .938 inWide
CHR 43761SEAL4.375 in x 5.9 in OD x 1 in Wide

General Product Information

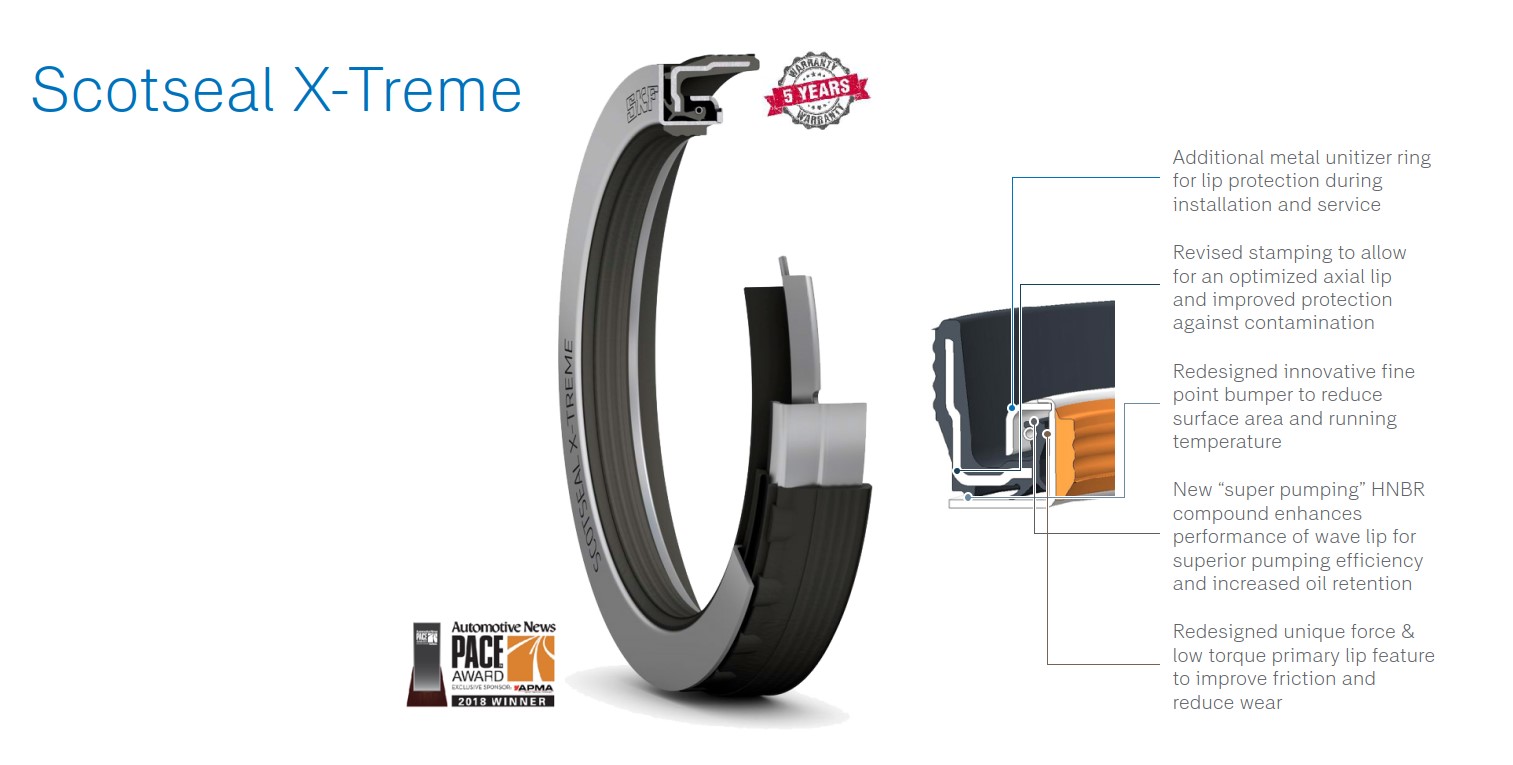

Scotseal X-Treme

With its ability to lower running friction and provide improved contamination exclusion, the Scotseal X-Treme is an ideal solution for fleets looking for maximum uptime, lowest cost per mile and the best ROI seal.
The Scotseal X-Treme wheel-end seal offers new design features that include optimized primary and axial lip profiles, a new metal unitizer geometry and the use of an upgraded HNBR lip material which enhances the performance of SKF’s unique “wave” lip design. Collectively, SKF says these features improve pumping so it runs 25 percent to 30 percent cooler and provides 50 percent less torque, all contributing to improved fuel economy.

Scotseal PlusXL

The most advanced generation Scotseal wheel seal is the preferred choice among many OE truck and trailer manufacturers. The Scotseal PlusXL features an advanced new HNBR (Hydrogenated Nitrile Butadiene Rubber) material that resists wheel end temperatures up to 300º F and offers broad compatibility with synthetic lubricants.  Additionally, the Scotseal PlusXL is hand installable, eliminating the need for special size tools.

Scotseal Longlife

Building on the multi-lip design of the Scotseal Classic, the Scotseal Longlife is designed to meet the harsh conditions of today’s heavy-duty environments. A newly formulated seal material and an added axial dirt excluder lip combine to battle high wheel end temperatures, harsh lubricants, and roadway contaminants.

Scotseal Classic

The Scotseal Classic is designed to handle a range of road and driving conditions. To extend service life, the three-lip sealing element contains a pre-lubed, spring-loaded primary sealing lip, a dirt exclusion lip, and an outer bumper lip. A Bore Tite® coating ensures a better seal than a metal-to-metal press fit.

Scotseal PRO

The SKF Scotseal PRO is a unitized, one-piece hand installable design seal that offers good sealing life under most operating conditions. This seal uses a high quality NBR material that provides good temperature capability, wear resistance, and broad compatibility with synthetic lubricants.



Warranty Information

Scotseal Pro:  1 year / 100,000 miles
Scotseal Classic:  1 year / 100,000 miles
Scotseal Hybrid:  3 year / 300,0000 miles
Scotseal Plus XL:  3 year / 3000,000 miles
Scotseal X-Treme:  5 year / 500,000 miles
