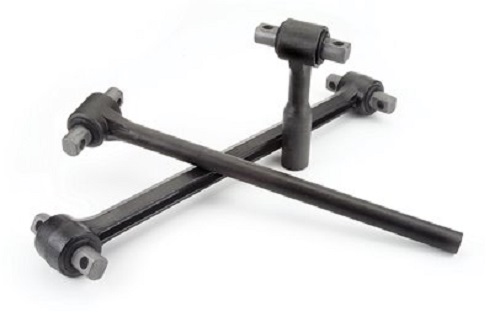

Hendrickson Torque Rods

Hendrickson’s portfolio: TRAXX ROD®, ULTRA ROD® PLUS and ULTRA ROD® torque rods are designed, tested and validated with advanced specifications. Available in various material and one or two piece configurations to deliver superior performance.

Product Highlights

Extended bushing life

Weight efficient

High-strength

Durability tested to Hendrickson's rigorous standards

Integrated concept development alongside suspension and springs

Top Movers - Torque Rods

Part NumberPart Description
HDR 44643 009LCROSS TUBE
HDR 62350 635TORQUE ROD ASY
HDR 48411 006HAS TORQUE ROD ASSY
HDR 58745 010TORQUE ROD, HEAVY DUTY
HDR R A 14496STABILIZER
HDR 62007 365ULTRA ROD 1 PC
HDR 62001 580ULTRA ROD 1 PC
HDR 62650 505380 STTR 1988
HDR 62650 535ULTRA ROD 1 PC
HDR 67428 560CONTROL ROD-SUSPENSION-TRANSVE

TRAXX RODS

Part NumberDescription
HDR 82440099585TRAXXROD-HVY-S.T.23.03"
HDR 82440099590TRAXXROD-HVY-S.T.23.23"
HDR 82440099605TRAXXROD-HVY-S.T.23.82"
HDR 82440099610TRAXXROD-HVY-S.T.24.02"
HDR 82440099615TRAXXROD-HVY-S.T.24.21"
HDR 82440099620TRAXXROD-HVY-S.T.24.41"
HDR 82440099625TRAXXROD-HVY-S.T.24.60"
HDR 82440099630TRAXXROD-HVY-S.T.24.80"
HDR 82440099635TRAXXROD-HVY-S.T.25.00"
HDR 82400000560TRAXXROD-HVY-S.S.22.05"
HDR 82400000565TRAXXROD-HVY-S.S.22.24"
HDR 82400000620TRAXXROD-HVY-S.S.24.41"
HDR 82400000640TRAXXROD-HVY-S.S.25.20"
HDR 82400000595TRAXXROD-HVY-S.S.23.43"
HDR 82440099645TRAXXROD-HVY-S.T.25.39"
HDR 82400000580TRAXXROD-HVY-S.S.22.83"
HDR 82400000645TRAXXROD-HVY-S.S.25.39"
HDR 82400000650TRAXXROD-HVY-S.S.25.59"
HDR 82400007580TRAXXROD-HVY-S.S.22.83"
HDR 82400007605TRAXXROD-HVY-S.S.23.82"
HDR 82400007615TRAXXROD-HVY-S.S.24.21"

General Product Information

One Piece Torque Rods

TRAXX ROD is a fabricated rod body with robotically welded and curled end hubs combined with Hendrickson’s proprietary rubber bonded bushings. TRAXX ROD performance is five times the performance life of conventional double shot bushings and similar performance of ball and socket torque rods, with better energy absorption, delivering superior bushing retention and longer component life for heavy- and severe‑duty applications.

ULTRA ROD PLUS — forged rod body with integrated end hub utilizing Hendrickson’s proprietary rubber bushing compound and bonded technology, also available with Hendrickson’s exclusive XTRB bushings.

ULTRA ROD — forged rod body with integrated forged end hub utilizing Hendrickson’s proprietary rubber bushing compound and bonded technology.

Two Piece Torque Rods

ULTRA ROD PLUS and ULTRA ROD Two Piece Torque Rods —  eliminate the need to carry a vast array of one piece torque rod inventory…just measure, cut and weld. Two piece torque rods with empty hubs or equipped with bushings provide the option to make any length torque rod with any bushing configuration.

Warranty Information
