New Weldon Stop/Tail, Turn, Back-up Lights

New Stop, Turn, Tail - PDF

C2 Bus Lights - PDF

Directional, Reflector, Licenses Plate Lighting - PDF

Product Highlights

Product Name

5801 & 5802 Series Lighting

Also, Directional marker and License Plate Lighting

Product Features or benefits

The new 5802-2100 series LED lights no feature surface mounted LEDs (SMT) with improved performance that meets DTNA 49-00085 Specs.

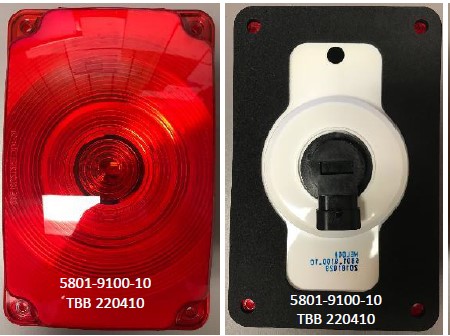

The new 5801-9100 series incandescent lights now features a serviceable design.  Fit, form, and function will be the same.  Lights will use #3157 Wedge base bulb that are available at dealerships and auto part stores.

Top Movers - General Lighting

Material NoMaterial Description
TBB 127562LAMP-STOP/TURN,TAIL, RED,3 PIN,8.5X5.5X1
TBB 159018BRAKE/TAIL LIGHT ASSY,RED 4IN INCANDESC
TBB 220410STOP TURN TAIL LIGHT RED INCANDESCENT
WTE 8101 0100 30LICENSE LAMP
TBB 221391REVERSE LIGHT CLEAR LED WELDON
WTE 518001001PLIGHT ASSY RED LED C2 TBB ONLY
TBB 163833STOP TURN TAIL LT RED LED
TBB 127574REVERSE LT CLEAR LED
WTE 518001002PLIGHT ASSY AMBER LED C2
TBB 213123LED MARKER LAMP RED ASM W/GROMMET
TBB 213168LED MARKER LAMP AMBER W/GROMMET
WTE 4040 0109 10BRAKE/TAIL LIGHT ASSY RED 4 LED
TBB 127568TURN LT AMBER LED
TBB 221389STOP TURN TAIL LIGHT RED LED WELDON
TBB 137106LIGHT ASSY AMBER LED FLUSH MT WELDON
WTE 5002 0000 20LENS - AMBER WELDON 5
WTE 1010 1120 10STOP/TAIL LAMP, DC
WTE 0C11 1183 00LENS 10X80 RED
WTE 500014101PLIGHT-MARKER RED
WTE 500014102PLIGHT-MARKER AMBER
TBB 127567TURN LT AMBER INCAND
TBB 127573REVERSE LT CLEAR INCAND

General Product Information

Weldon has discontinued the current incandescent and LED Stop/Tail, Turn, Back-up lamps. These lights were replaced by new designs with new improved technology and features. The part numbers we updated this summer for the RED, Amber, and Amber turn. The C2 has different Stop, turn tail light and amber light than the Minotour/HDX/EFX. The reverse light is the same for all models. We had to add a resistor so the lights will be compatible with the Dorian monitor.

Current 5801 Series Incandescent light - Features a flat lens and non-serviceable bulb. 5801-9100 Series- same Fit, slightly different Form, improved Function…serviceable design. The design has a curved lens and uses a serviceable wedge based bulb



Warranty Information
