Parker Racor Fuel Filter Water Separators

In every configuration, at every flow rate, and in any operating environment, Racor is the most trusted name in engine protection. Parker Racor's portfolio: Diesel Spin-on and Turbine Series Fuel Filter Water Separators. Visit our website for more details.

Product Highlights

See-thru collection bowls allow a water-in-fuel condition to be immediately visible

High contaminant holding capacity replaceable elements provide long service life

Corrosion-resistant coatings and construction

Aquabloc® media is standard – 2, 10, 30 micron

Hand and electric priming available on diesel only models

Gasket and o-ring materials designed for use in diesel or gasoline

Powerful in-bowl heaters can be added to improve operation

Top Movers - Racor Diesel Spin-on Fuel Filter Water Separators

Primary Part NoSupplier Part NoDescriptionPart Weight (lbs)
RAI 120AP120APFF/WS ASSEMBLY, 15 gph Flow Rate, 30M1.18
RAI 120AS120ASFF/WS ASSEMBLY, 15 gph Flow Rate, 2M1.22
RAI 120AT120ATFF/WS ASSEMBLY, 15 gph Flow Rate, 10M1.18
RAI 120RMAM2120RMAM2FF/WS ASSEMBLY, Marine Metal Bowl, 15 gph Flow Rate, 2M1.4
RAI 140R140RFF/WS ASSEMBLY, 15 gph Flow Rate, 10M0.88
RAI 215R2215R2FF/WS ASSEMBLY, 15 gph Flow Rate, Hand Primer, 2M2.23
RAI 215R30215R30FF/WS ASSEMBLY, 15 gph Flow Rate, Hand Primer, 30M2.22
RAI 230R10230R10FF/WS ASSEMBLY, 30 gph Flow Rate, Hand Primer, 10M2.3
RAI 230R2230R2FF/WS ASSEMBLY, 30 gph Flow Rate, Hand Primer, 2M2.32
RAI 230R30230R30FF/WS ASSEMBLY, 30 gph Flow Rate, Hand Primer, 30M2.29
RAI 245R10245R10FF/WS ASSEMBLY, 45 gph Flow Rate, Hand Primer, 10M2.44
RAI 245R30245R30FF/WS ASSEMBLY, 45 gph Flow Rate, Hand Primer, 30M2.43
RAI 3150R3150RFF/WS ASSEMBLY, Clear Bowl, 150 gph Flow Rate, 10M3.82
RAI M4120R304120R30FF/WS ASSEMBLY, 30 MICRON3.58
RAI 445R10445R10FF/WS ASSEMBLY, Hand Primer, 45 gph Flow Rate, 10M3.12
RAI 445R2445R2FF/WS ASSEMBLY, Hand Primer, 45 gph Flow Rate, 2M3.07
RAI 445R30445R30FF/WS ASSEMBLY, Hand Primer, 45 gph Flow Rate, 30M3.08
RAI445R FRT01445R-FRT-01FU/WTR SEP-W/O HEAT,PUMP,4452.84
RAI 460R1230460R1230FF/WS ASSEMBLY, Hand Primer, 60 gph Flow Rate, 12 volt Heater, 30M3.5
RAI 460R30460R30FF/WS ASSEMBLY, Hand Primer, 60 gph Flow Rate, 30M3.28
RAI 490R10490R10FF/WS ASSEMBLY, Hand Primer, 90 gph Flow Rate, 10M0.97
RAI490R30490R30FF/WS ASSEMBLY, Hand Primer, 90 gph Flow Rate, 30M3.35
RAI 23514209490R-DDC-02FILTER,FUEL/WATER SEPARATORN/A
RAI 17001 3429490R-WS-02FILTER,FUEL/WATER SEPARATOR3.95
RAI 17001 3430490R-WS-03FILTER,FUEL/WATER SEPARATOR3.81
RAI 660R1210660R1210FF/WS ASSEMBLY, 60 gph Flow Rate, 12 volt Heater, 10M2.94
RAI 660R30660R30FF/WS ASSEMBLY, 60 gph Flow Rate, 30M2.71
RAI 660R TB 01660R-TB-01FILTER,FUEL/WATER SEPARATORN/A
RAI 690R10690R10FF/WS ASSEMBLY, 90 gph Flow Rate, 10M2.8
RAI 690R TB 01690R-TB-01FILTER,FUEL/WATER SEPARATORN/A
RAI 790R30790R30FF/WS ASSEMBLY, INTEGRATED, 90 GPH, 30M6.02
RAI 790R3024790R3024FF/WS ASSEMBLY, INTEGRATED, 90 GPH, 24 VOLT PUMP, 30M5.68
RAI R11TR11TREPLACEMENT ELEMENT, FF/WS, 10M0.13
RAI R120DDCR120-DDCREPLACEMENT ELEMENT, FF/WS1.75
RAI R120PR120PREPLACEMENT ELEMENT, FF/WS, 30M1.69
RAI R120SR120SREPLACEMENT ELEMENT, FF/WS, 2M1.75
RAI R120TR120TREPLACEMENT ELEMENT, FF/WS, 10M1.74
RAI R12PR12PREPLACEMENT ELEMENT, FF/WS, 30M0.5
RAI R12SR12SREPLACEMENT ELEMENT, FF/WS, 2M0.52
RAI R12TR12TREPLACEMENT ELEMENT, FF/WS, 10M0.51
RAI R13PR13PREPLACEMENT ELEMENT, FF/WS, 30M0.65
RAI R15PR15PREPLACEMENT ELEMENT, FF/WS, 30M0.9
RAI R15SR15SREPLACEMENT ELEMENT, FF/WS, 2M0.93
RAI R15TR15TREPLACEMENT ELEMENT, FF/WS, 10M0.91
RAI R20PR20PREPLACEMENT ELEMENT, FF/WS, 30M0.99
RAI R20SR20SREPLACEMENT ELEMENT, FF/WS, 2M1
RAI R20TR20TREPLACEMENT ELEMENT, FF/WS, 10M0.99
RAI R24PR24PREPLACEMENT ELEMENT, FF/WS, 30M0.91
RAI R24SR24SREPLACEMENT ELEMENT, FF/WS, 2M0.94
RAI R24TR24TREPLACEMENT ELEMENT, FF/WS, 10M0.94
RAI R25PR25PREPLACEMENT ELEMENT, FF/WS, 30M1.14
RAI R25SR25SREPLACEMENT ELEMENT, FF/WS, 2M1.16
RAI R25TR25TREPLACEMENT ELEMENT, FF/WS, 10M1.19
RAI R26PR26PREPLACEMENT ELEMENT, FF/WS, 30M1.02
RAI R26SR26SREPLACEMENT ELEMENT, FF/WS, 2M1.07
RAI R26TR26TREPLACEMENT ELEMENT, FF/WS, 10M1.06
RAI R45FRT01YR45-FRT-01YREPLACEMENT ELEMENT, FF/WS1.12
RAI R45SR45SREPLACEMENT ELEMENT, FF/WS, 2M1.15
RAI R45TR45TREPLACEMENT ELEMENT, FF/WS, 10M1.13
RAI R60PR60PREPLACEMENT ELEMENT, FF/WS, 30M1.31
RAI R60SR60SREPLACEMENT ELEMENT, FF/WS, 2M1.36
RAI R60TR60TREPLACEMENT ELEMENT, FF/WS, 10M1.32
RAI 23514654R90-DDC-01REPLACEMENT ELEMENT, FF/WS1.47
RAI R90 MER 01R90-MER-01REPLACEMENT ELEMENT, FF/WS1.84

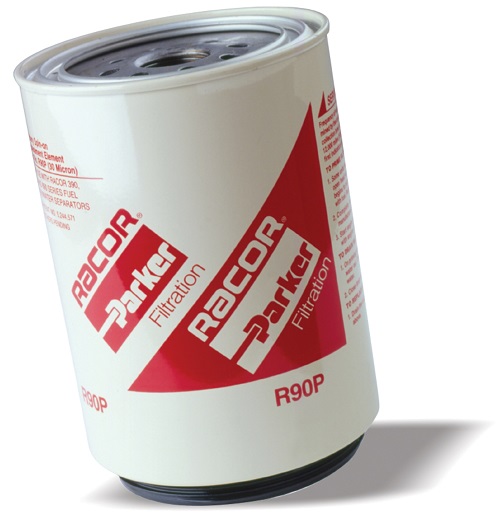

RAI R90PR90PREPLACEMENT ELEMENT, FF/WS, 30M1.48
RAI R90SR90SREPLACEMENT ELEMENT, FF/WS, 2M1.5
RAI R90TR90TREPLACEMENT ELEMENT, FF/WS, 10M1.48

Top Movers - Racor Turbine Series Fuel Filter Water Separators

Primary Part NoSupplier Part NoDescriptionPart Weight (lbs)
RAI 1000FH101000FH10FF/WS ASSEMBLY, 10 MICRON9.71
RAI 1000FH21000FH2FF/WS ASSEMBLY, 2 MICRON9.69
RAI 1000FH301000FH30FF/WS ASSEMBLY, 30 MICRON9.55
RAI 1000FH312101000FH31210FF/WS ASSEMBLY, 12V HEAT, 10 MICRON9.55
RAI 1000FH31221000FH3122FF/WS ASSEMBLY, 12V HEAT, 2 MICRON10
RAI 1000FH312301000FH31230FF/WS ASSEMBLY, 12V HEAT, 30 MICRON10
RAI 1000FH FRT011000FH-FRT-01FWS 30MCN W/HT9.94
RAI 1000MA21000MA2FF/WS, MARINE, WHITE, 2 MICRON10.36
RAI 1000MA301000MA30FF/WS, MARINE, WHITE, 10 MICRON10.24
RAI 1000MAM301000MAM30FF/WS, MARINE, UL DSL/GAS 100, 30 MICRON10.98
RAI 2000SM OR2000SM-ORELEMENT RPLC 2MIC.W/0.08
RAI 2010PM OR2010PM-ORRPLC ELEM 30 MICRON0.16
RAI 2010SM OR2010SM-ORELEMENT RPLC 2MICW/0.17
RAI 2010TM OR2010TM-ORELEMENT RPLC 10MICW0.17
RAI 2020PM OR2020PM-ORELEMENT RPLC 30MIC.W0.79
RAI 2020SM OR2020SM-ORELEMENT RPLC 2MIC.W/0.84
RAI 2020TM OR2020TM-ORELEMENT RPLC 10MIC.W0.86
RAI 2040PM OR2040PM-ORELEMENT RPLC 30MIC.W0.48
RAI 2040SM OR2040SM-ORELEMENT RPLC 2MIC.W/0.51
RAI 2040TM OR2040TM-ORELEMENT RPLC 10MIC .0.51
RAI 500FG2500FG2FG-FUEL FILTER/WATER3.85
RAI 500FG30500FG30FUEL FILTER3.82
RAI 500MA2500MA2FF/WS ASSEMBLY, MARINE-UL4.29
RAI 751000FHX10751000FHX10FUELFIL/WATER ASSEM32
RAI 751000MAX30751000MAX30DUPLEX MANIFOLD34
RAI 791000FHV30791000FHV30FF/WS MANIFOLD56
RAI 791000MAV30791000MAV30MAV FF/WS MA DUAL VA58
RAI 900FH10900FH10FILTER ASSEMBLY - FF/WS6.7
RAI 900FH2900FH2FUEL FILTER6.77
RAI 900FH30900FH30FILTER6.78
RAI 900FH3122900FH3122FF/WS_ASSEMBLY7.16
RAI RK 11028BRK 11028BKIT CHECK BALL 900/10.02
RAI RK 11037ARK 11037AKIT BOWL RING 900/100.38
RAI RK 11073RK 11073KIT RPLC BALL VALVE0.62
RAI RK 11 1404RK 11-1404KIT SERVICE 900/10000.09
RAI RK 11 1606 1RK 11-1606-1KIT RPLC BOWL 900/100.53
RAI RK 11 1679RK 11-1679KIT PLUG AY0.01
RAI RK 11 1927 01RK 11-1927-01LID AND LID GASKET KIT0.46
RAI RK 11 1938RK 11-1938SEE THRU BOWL W/DRAI0.53
RAI RK 11 1939RK 11-1939TURBINE CENTRIFUGE0.26
RAI RK11 1952RK 11-1952REPLACEMENT SEAL KIT SERVICE 900/10000.07
RAI RK 11868RK 11868KIT RPLC DEFLECTOR 90.61
RAI RK 14321RK 14321KIT WATER DETECTION0.25
RAI RK 15010BRK 15010BKIT RPLC CHECK BALL0.02
RAI RK 15211RK 15211KIT SERVICE 5000.05
RAI RK 15279 01RK 15279-01KIT RPLC BOWL CLEAR0.28
RAI RK 19492RK 19492RPLC KIT BRASS SHUT0.34
RAI RK 20022RK 20022KIT 110 PROBE PLUG R0.05
RAI RK 20126RK 20126KIT BOWL PLUG RELACE0.01
RAI RK 20726RK 20726KIT-LITE/BZR.WTR.SEN.GAGE12/240.31
RAI RK 21069RK 21069KIT RPLC WATER PROBE0.04
RAI RK 30488RK 30488RPLC KIT DRAIN ASSY0.04
RAI RK11 2005RK11-2005REPL KIT, STEEL CLAMP BLACK1.36
RAI RK30880ERK30880EREPLACEMENT KIT WIF SENSOR AMPLIFIER0.48

Features and Benefits

Corrosion resistant construction

2, 10, 30 micron high efficiency engineered media elements

Available in single, double and triple assembly units

Easy service as no tools are required

Create a customized right sized solution for your application with the wide range of options available

Genuine Racor product that has been extensively tested to OEM specifications

Top Movers - Racor Air Filtration

Primary Part NoSupplier Part NoDescriptionPart Weight (lbs)
RAI 05180000051800000T-528 D/C RACOR BRAND24
RAI 071338 00271338002ECO-II AIR FILTER ASSEMBLY, 11X24 OG18
RAI 124923000124923000ECOLITE AIR FILTER ASSEMBLY, 11X24 TI19
RAI 400820 015400820015ECO-LL AIR FILTER ASSEMBLY, 11X18 TI14
RAI 500229000500229000ECO III CLIP KIT, WIREFORM 8 PC. N/A
RAI 500250012500250012ECO III AIR FILTER ASSEMBLY W/SAFETY FILTER, 13X21N/A
RAI500251012500251012ECO III AIR FILTER ASSEMBLY W/O SAFETY FILTER, 13X21N/A
RAI 500467002500467002ECO XL13 END COVER KITN/A
RAI AD DU3KTAD-DU3-KTREPAIR KIT FOR AIR DRYERN/A
RAI AD DU4 58270AD-DU4-58270AIR DRYERN/A
RAI AF M501012AF M501012HOUSING, AIR FILTER/SILENCER5
RAI AF M8010AF M8010REPLACEMENT ELEMENT AIR FILTERN/A
RAI AF M8034AF M8034REPLACEMENT ELEMENT AIR FILTERN/A
RAI AF M8033AF M8040REPLACEMENT ELEMENT AIR FILTERN/A
RAI AF M8050AF M8050REPLACEMENT ELEMENT AIR FILTER1.74
RAI AF M8060AF M8060REPLACEMENT ELEMENT AIR FILTER2.22

Features and Benefits

Air filtration product line includes: Engine air filters and silencers, pre-cleaners, air dryers and moisture/ember engine air separators

Racor air filters offer the highest degree of filtration and life

Installation flexibility

Superior performance

Easy service

General Product Information

Products

Racor Diesel Spin-on Fuel Filter Water Separators (FF/WS) - Racor fuel filter water separators provide efficient and reliable engine protection. Maximize engine protection with a low-profile, easy-to-fit filtration system. They are compact and Versatile Systems for all diesel and gasoline engines. Racor Diesel Spin-on Series filters use Aquabloc® media to reliably remove dirt and water from diesel and gasoline. Aquabloc® media is pleated, corrugated, and arranged for optimum water rejection and longest service life. Small contamination particles are stopped at the surface of the Aquabloc® media, while even smaller particles are held deeper in the media layers. These fuel filter/water separators are designed for high performance applications, and will help your diesel or gasoline engine perform better than ever with clean, water-free fuel. The mounting head and filter body are protected with a durable electrostatically applied powder coating for superior corrosion resistance. This spin-on filter design is simple to service, and the reusable clear engineering plastic or metal contaminant collection bowls feature a self-venting drain or metal plug, for draining out unwanted muck and water. These cost-effective filters are for on-engine or remote mounting, and come with hand-operated (diesel only) priming pumps, a feature that allows for easy filter replacement and air purge. When it’s time for service, only the filter element is replaced—the bowl and drain plug are reused. Water-in-fuel (WIF) sensor upgrades are available to alert operators to drain accumulated water from the bowl.

Turbine Series Fuel Filter Water Separators (FF/WS) - Racor fuel filter water separators provide efficient and reliable engine protection. They provide heavy-duty, high-capacity water separation and fuel filtration. The Racor Turbine Series is the most trusted fuel filtration water separator available in the market. The waterproof, rustproof and dirtproof Aquabloc® Synergy media undergoes a water repelling treatment process that simultaneously separates and coalesces, forming heavy water droplets that collect into the filter bowl. The Racor Turbine series has a wide range of flow rates starting from 60 gph on a single 500FG Series up to 540 gph on 1000FH series installed in triplex formation. Duplex and Triplex Turbine units offers safety by having a clean filter in reserve.

Air Filtration - When your engine is operating in adverse conditions; off-road, in the desert, out at sea, or just on the local highway, it needs to be able to breathe clean, dry air. Parker Racor’s range of engine air filters offer the highest degree of filtration and life available. Using pre-cleaners capable of removing in excess of 85% of dirt prior to reaching the filter element, Parker Racor engine air filters can achieve 99.9%+ efficiency per SAE J726C. Fitted with Parker Racor pre-cleaning air filters, mobile equipment, mining machinery and wheel loaders can survive harsh dust filled environments without clogging air filters in seconds; continuing to work, whatever the conditions. Parker Racor’s complete family of air filtration systems can be configured to meet a wide range of on-road, off-road, and industrial applications. From ECO Series to a custom designed air filtration systems, Parker Racor provides innovative solutions to exceed customer expectations.



Warranty Information

All products manufactured or distributed by Racor are subject to the following, and only the following, LIMITED EXPRESS WARRANTIES, and no others: For a period of one (1) year from and after the date of purchase of a new Racor product, Racor warrants and guarantees only to the original purchaser-user that such a product shall be free from defects of materials and workmanship in the manufacturing process. The warranty period for pumps and motors is specifically limited to ninety (90) days from date of purchase.
