General Information
Alliance vehicle replacement light bulb program is divided into 3 categories, headlamps, miniatures, and sealed beams to provide wide range of coverage for popular direct OES application for Freightliner, Western Star, Thomas Built Buses, and all-makes.
Features and Benefits
Alliance vehicle Lighting products are reliable, long lasting and reduce maintenance cost due to burn outs
Produce increased light output that meets or exceeds OE specifications for enhanced vision
- All products are 100% tested at the factory before shipped
- Our Lighting products meet or exceed DOT, SAE and ANSI industry requirements
- All bulbs are ROHS Compliant
- Produce at IATF16949 certified facilities
Availability Information
Available throughout the DTNA PDC network in US and Canada
Alliance Replacement Light Bulbs
 |
 |
 |
 |
 |
 |
TOP MOVERS
| Alliance Part Number | Part Description | Cross 1 |
|---|---|---|

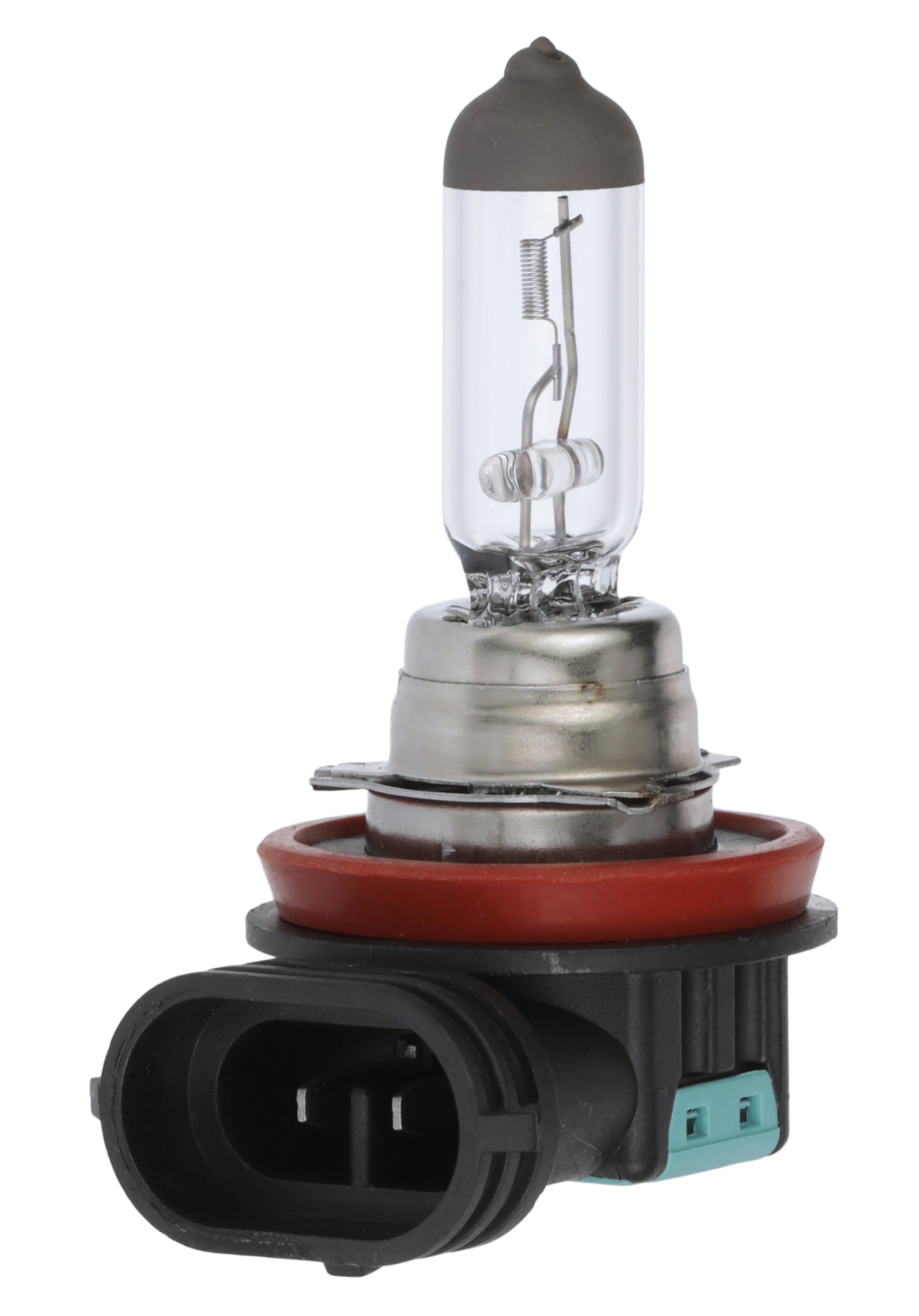

| ABP N54B H11LL | H11 12V 55W T4 PGJ19-2 LONG LIFE(HEADLAM | SYL H11LL12V55W |

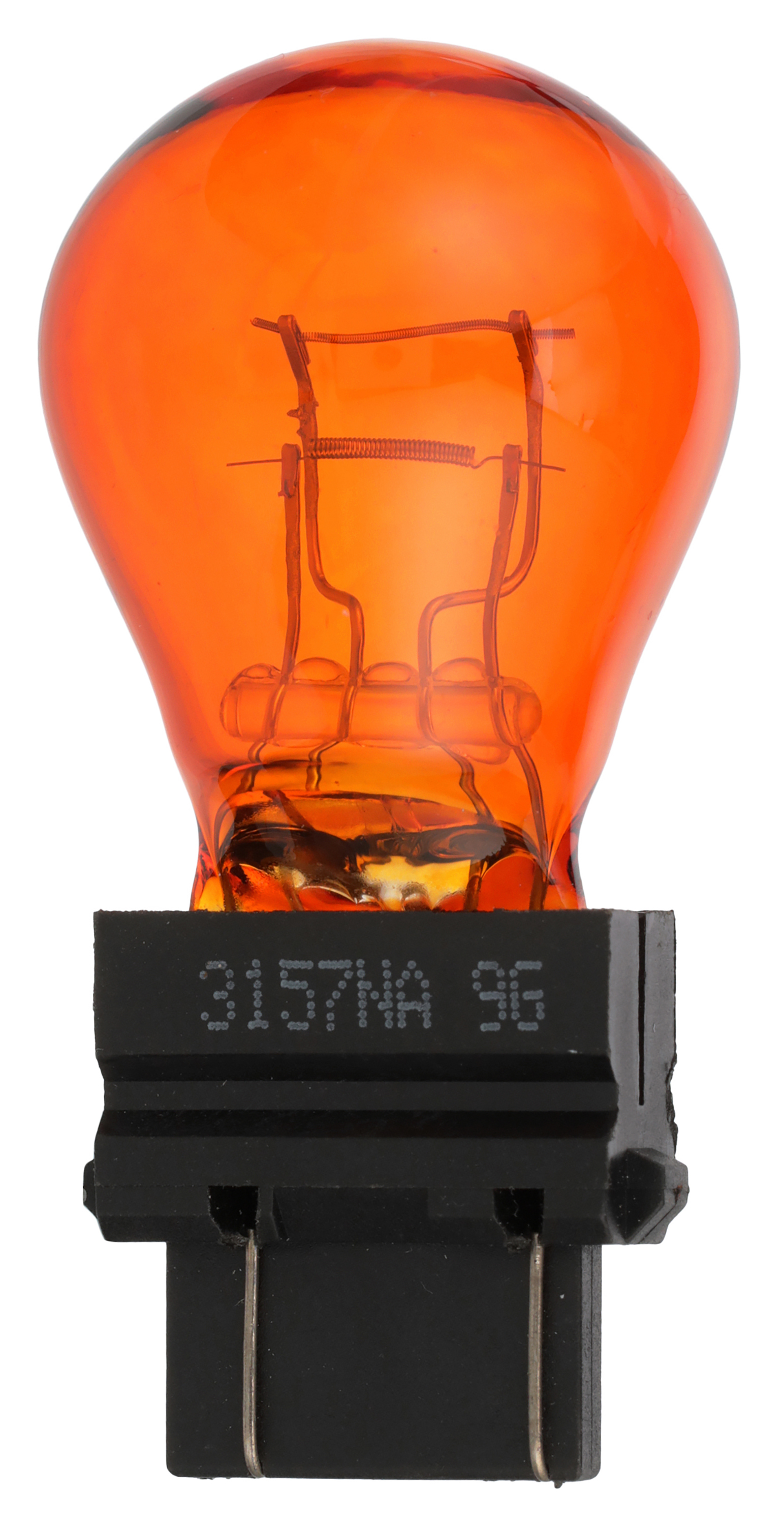

| ABP N54B 3157NA | 12.8/14V 2.1/.59A S-8 AMBER P.W(MINIATUR | PLC 3157NACP |
| ABP N54B 194 | 14V 0.27A T3-1/4 WEDGE BASE(MINIATURE) | PLC 194CP |
| ABP N54B 9006XSLL | 12.8V 55W STRAIGHT XS BASE LONG LIFE(HEA | SYL 9006XSLL |

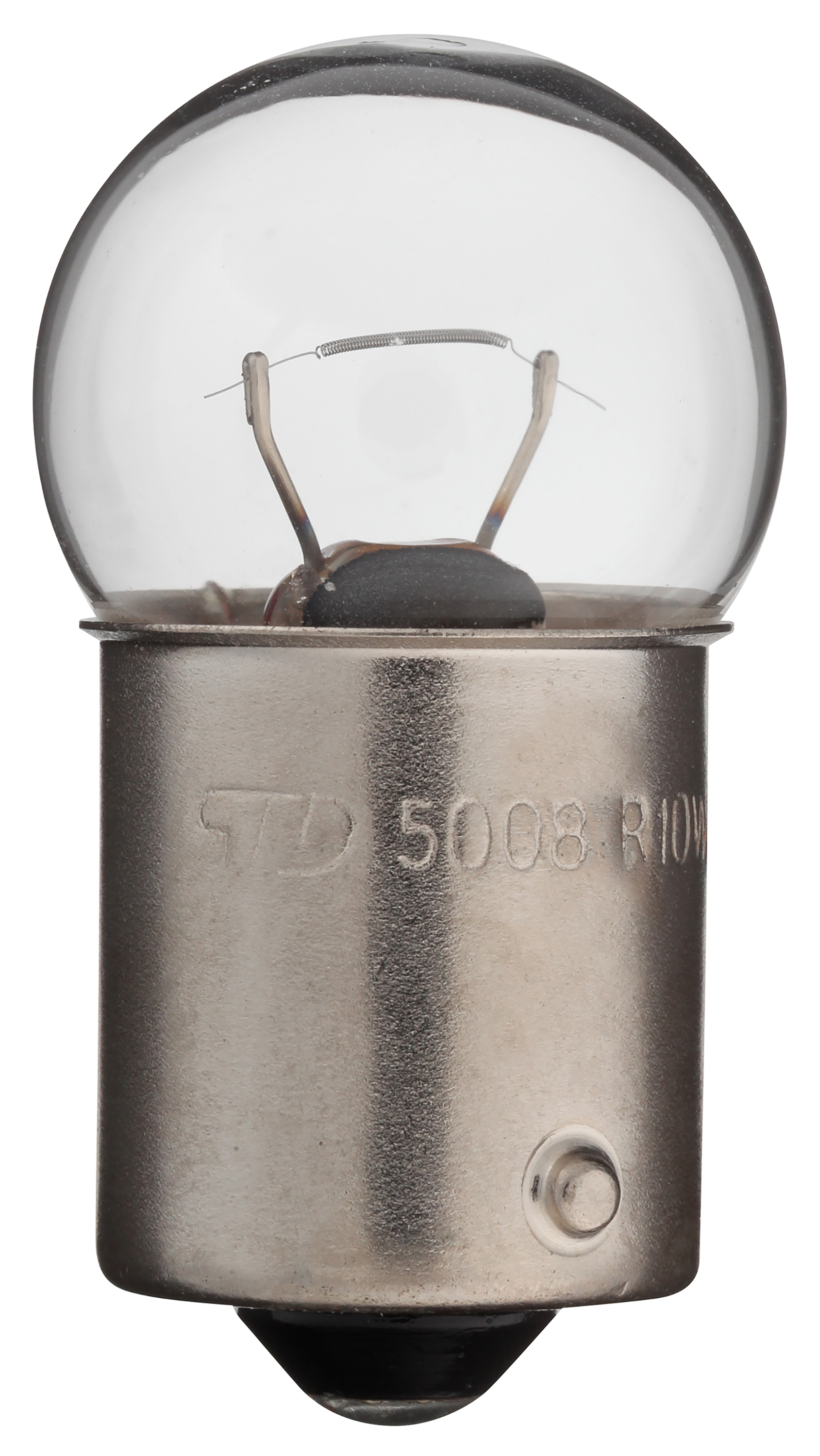

| ABP N54B 5008 | 12V 0.83A G-6 SC BAYONET (BA15S)(MINIA | SYL 5008 |
| ABP N54B 1157 | 12.8/14V 2.1/0.59A S-8 DC INDEX BAY(MIN | PLC 1157CP |

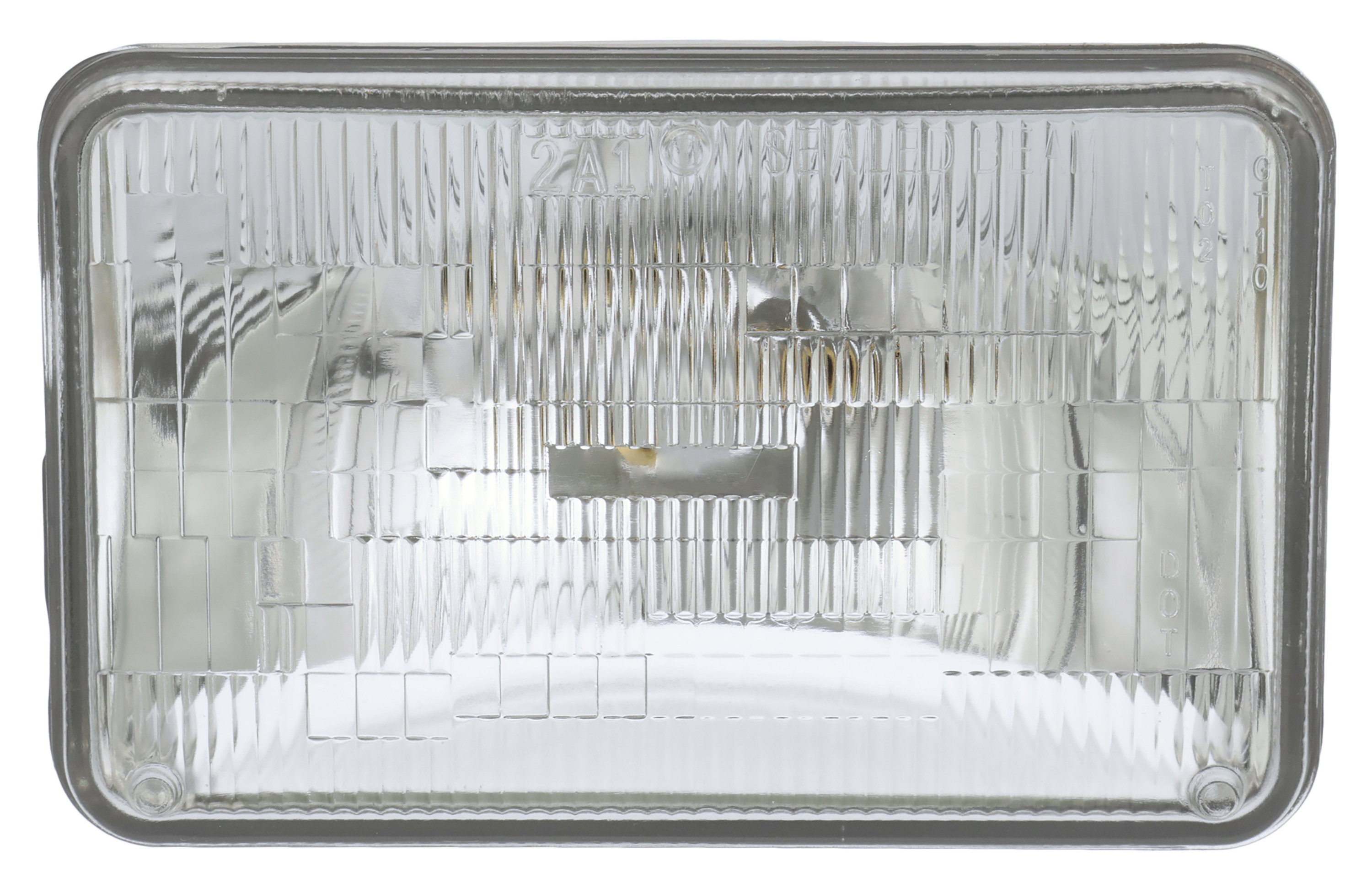

| ABP N54B H4656 | 12.8V 35/35W 100X165MM 3 LUGS(SEALED BEA | PLC H4656C1 |

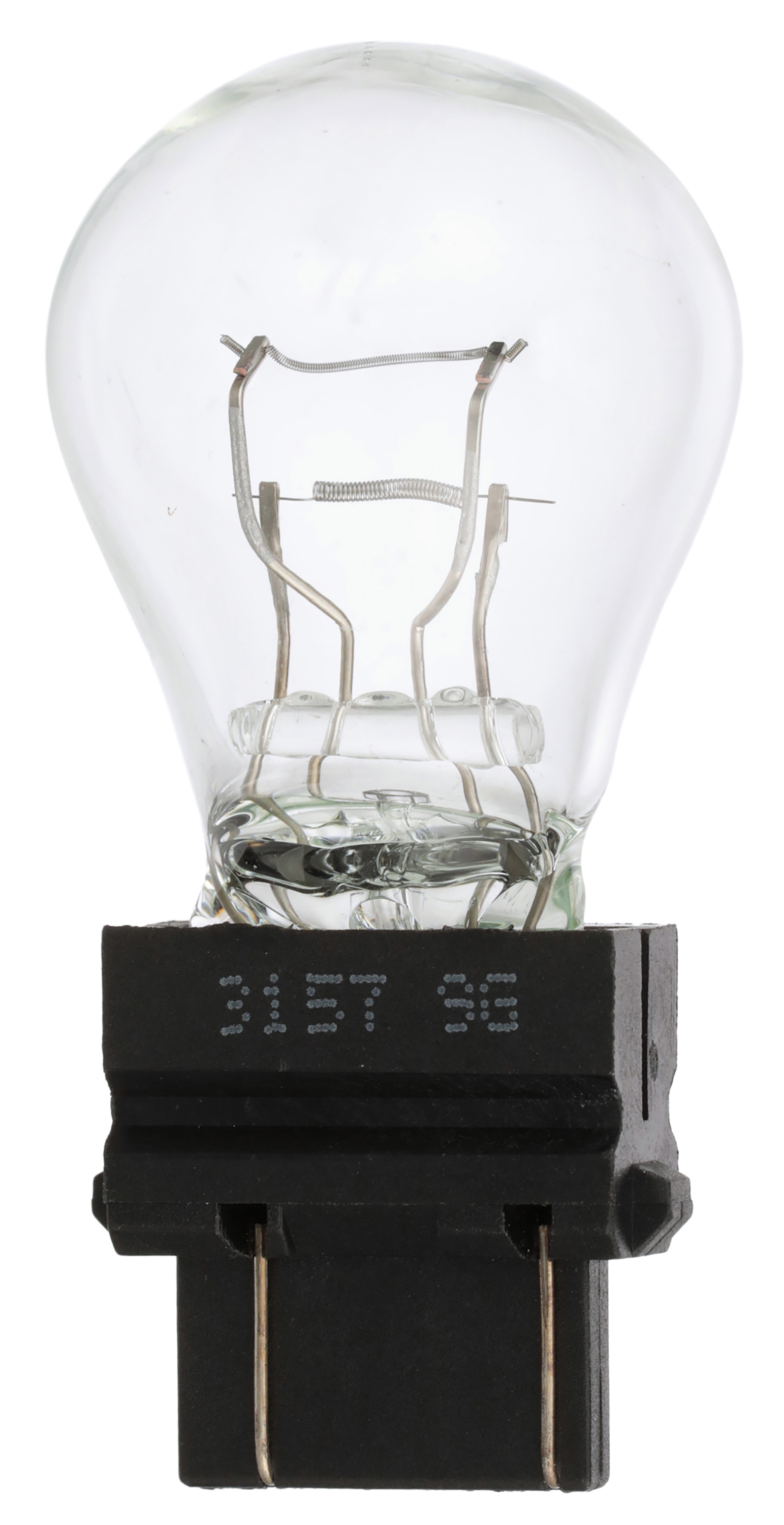

| ABP N54B 3157 | 12.8/14V 2.1/0.59A S-8 POLYMER WB(MINIAT | PLC 3157CP |
| ABP N54B 9003 | 12V 60/55W HB2 T-5 P43T-38 BASE(HEADLAMP | PLC 9003C1 |
| ABP N54B 9005XSLL | 12.8V 65W STRAIGHT XS BASE LONG LIFE(HEA | SYL 9005XSLL |
| ABP N54B H4651 | 12.8V 50W 100 X 165MM 2 LUGS(SEALED BEA | PLC H4651C1 |
| ABP N54B 1156 | 12.8V 2.1A S-8 SC BAYONET (BA15S)(MINI | PLC 1156CP |
| ABP N54B 898 | 12.8V 37.5W 2.93A T3-1/4 RIGHT A. PF(HEA | PLC 898B1 |
| ABP N54B 9006 | 12.8V 55W HB4 LOW BEAM(HEADLAMP) | PLC 9006C1 |
| ABP N54B H7 | 12V 55W H7 T4-5/8 PX26D BASE(HEADLAMP) | PLC 12972C1 |
| ABP N54B H6024 | 12.8V 65/35W PAR56 3 LUGS(SEALED BEAM) | PLC H6024C1 |
| ABP N54B H4656LL | 12.8V 40/55W 100X165MM 3 LUGS LL(SEALE | PLC H4656LLC1 |
| ABP N54B 896 | 12.8V 37.5W T3-1/4 RIGHT A. PREFOCUS(HEA | PLC 896B1 |

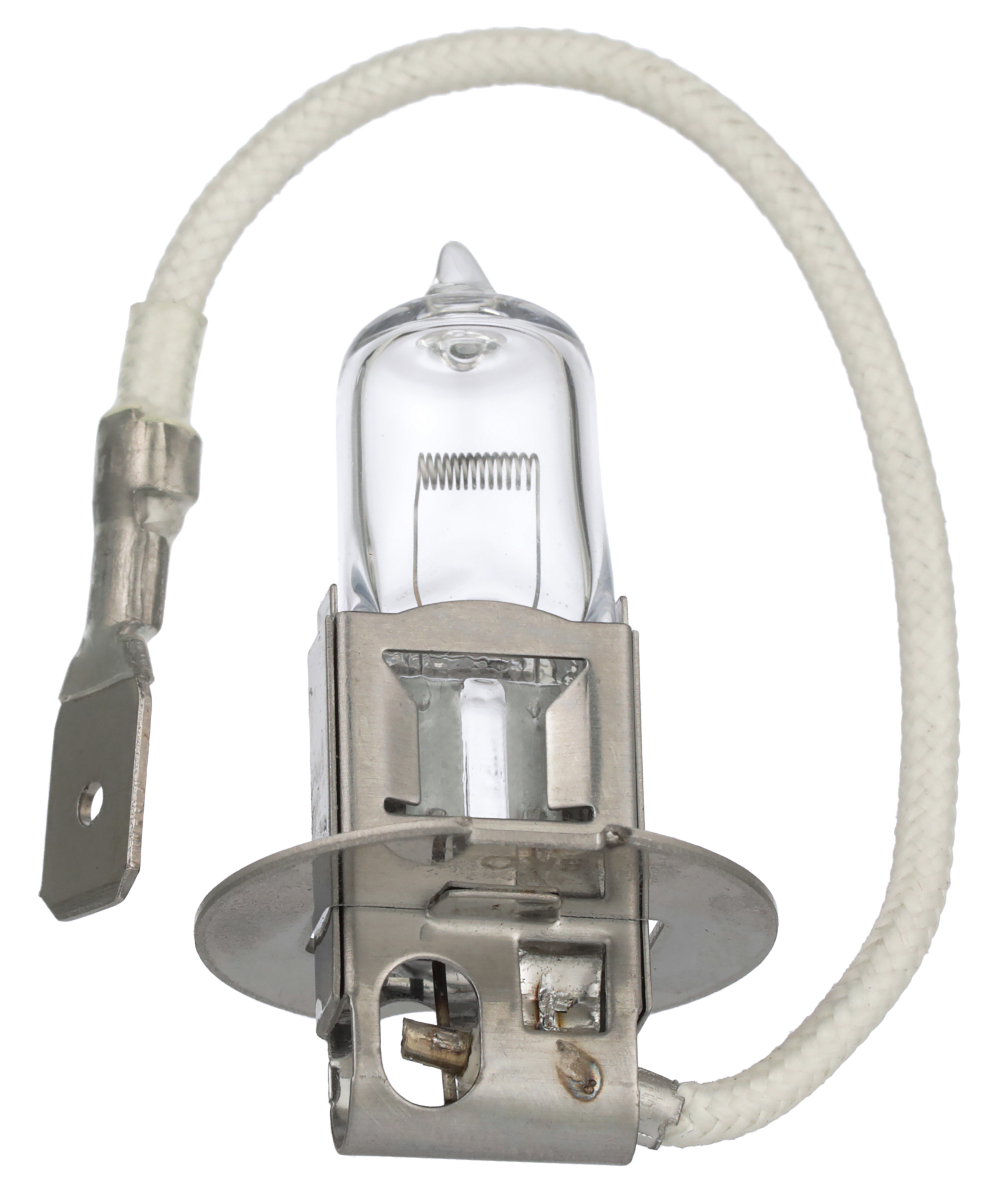

| ABP N54B H3 55W | 12V 55W H3 T3-1/2 PK22S BASE(HEADLAMP) | PLC 12336B1 |
| ABP N54B H9421 | 12.8V 50W 92X150 SB(SEALED BEAM) | PLC H9421C1 |
| ABP N54B 4411 | 12.8V 35W PAR 36 2 MP SLIP-ON/SCREW(SEAL | GE 4411 3 |
| ABP N54B 3157NALL | 12.8/14V 2.1/.59A S-8 POLYMER LL (MINIAT | SYL 3157NALL |
