General Information

Alliance vehicle replacement light bulb program is divided into 3 categories, headlamps, miniatures, and sealed beams to provide wide range of coverage for popular direct OES application for Freightliner, Western Star, Thomas Built Buses, and all-makes.

TOP MOVERS

Features and Benefits

Alliance Part Number	Part Description	Cross 1

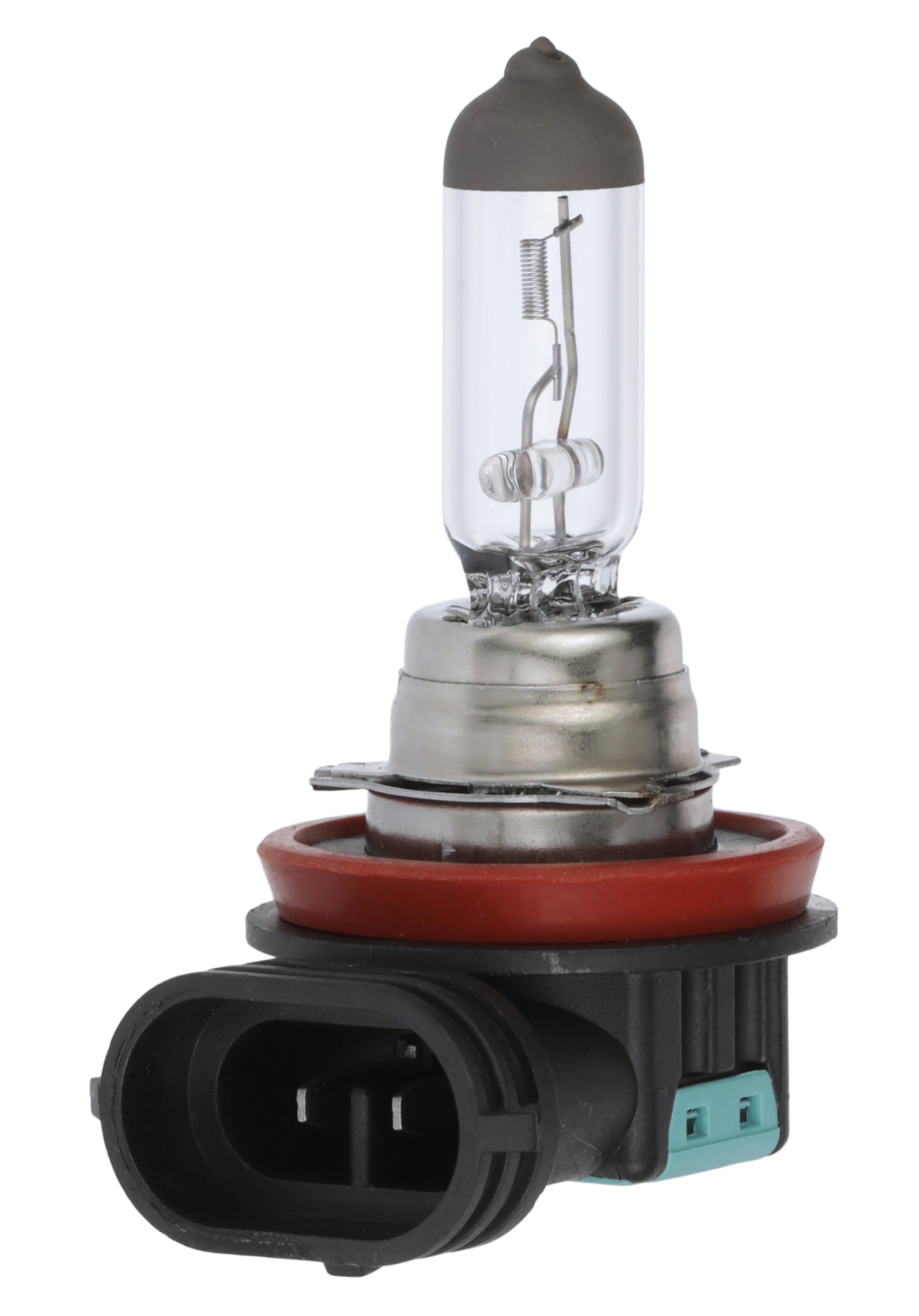

ABP N54B H11LL	H11 12V 55W T4 PGJ19-2 LONG LIFE(HEADLAM	SYL H11LL12V55W

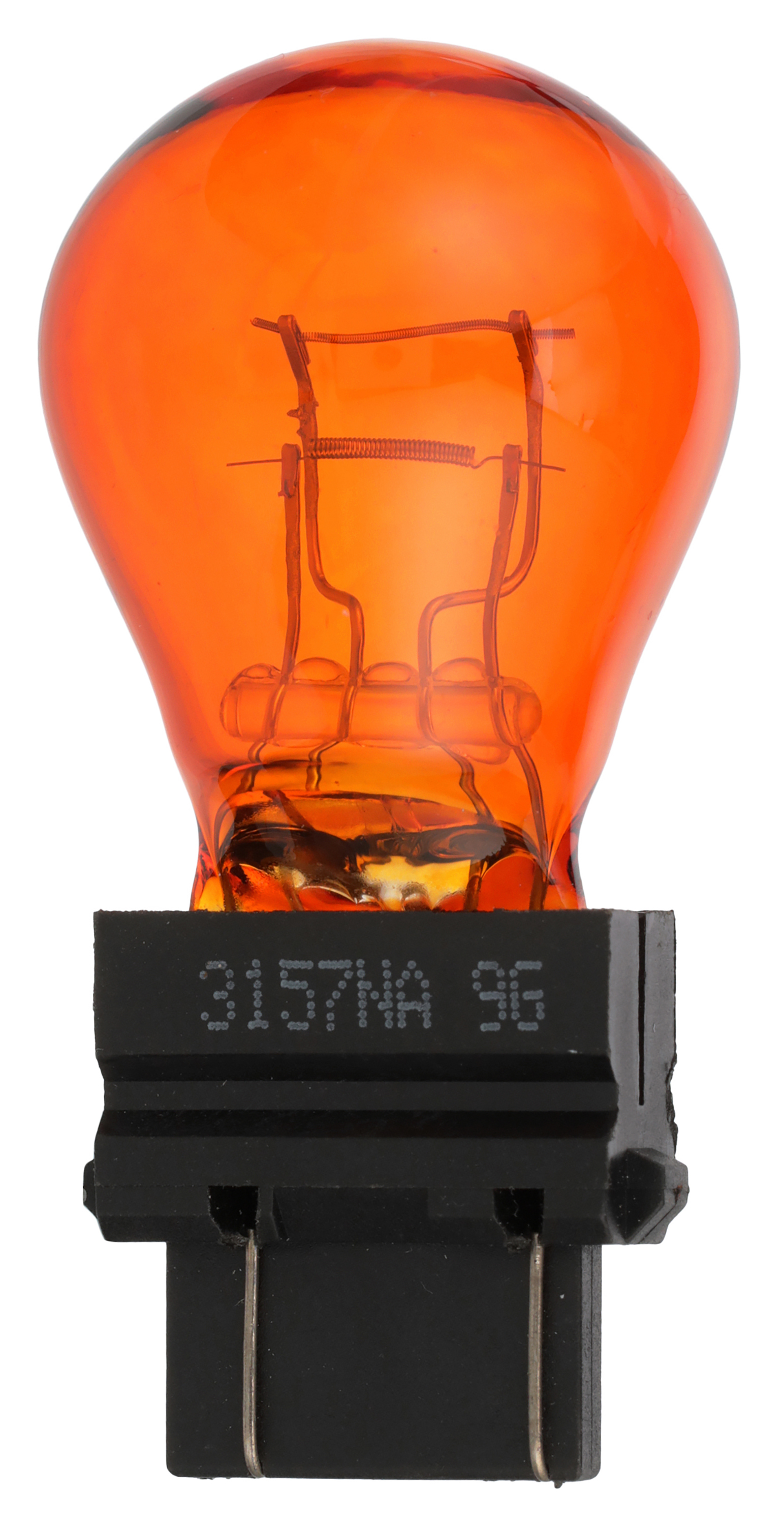

ABP N54B 3157NA	12.8/14V 2.1/.59A S-8 AMBER P.W(MINIATUR	PLC 3157NACP
ABP N54B 194	14V 0.27A T3-1/4 WEDGE BASE(MINIATURE)	PLC 194CP
ABP N54B 9006XSLL	12.8V 55W STRAIGHT XS BASE LONG LIFE(HEA	SYL 9006XSLL

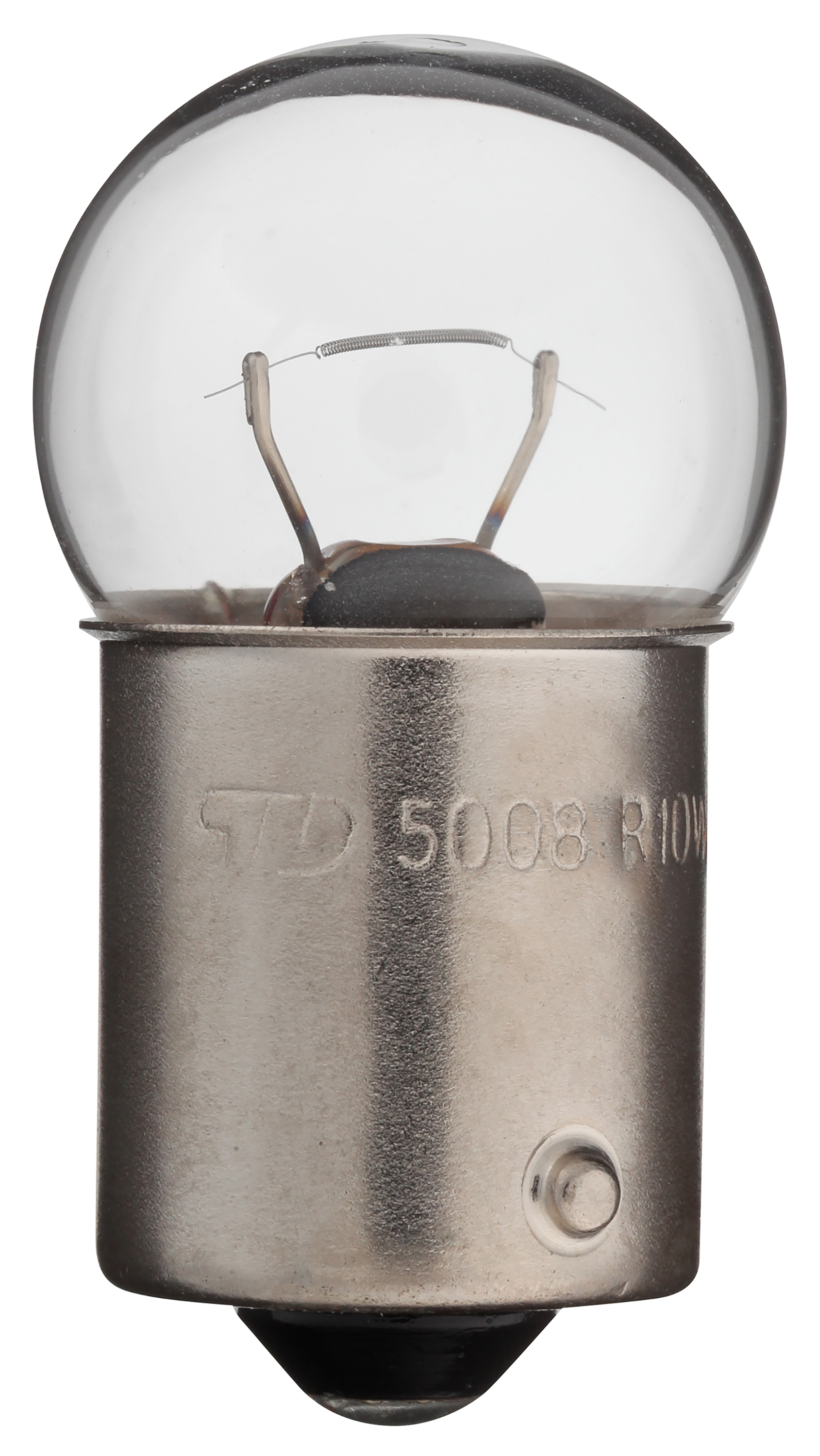

ABP N54B 5008	12V 0.83A G-6 SC BAYONET (BA15S)(MINIA	SYL 5008
ABP N54B 1157	12.8/14V 2.1/0.59A S-8 DC INDEX BAY(MIN	PLC 1157CP

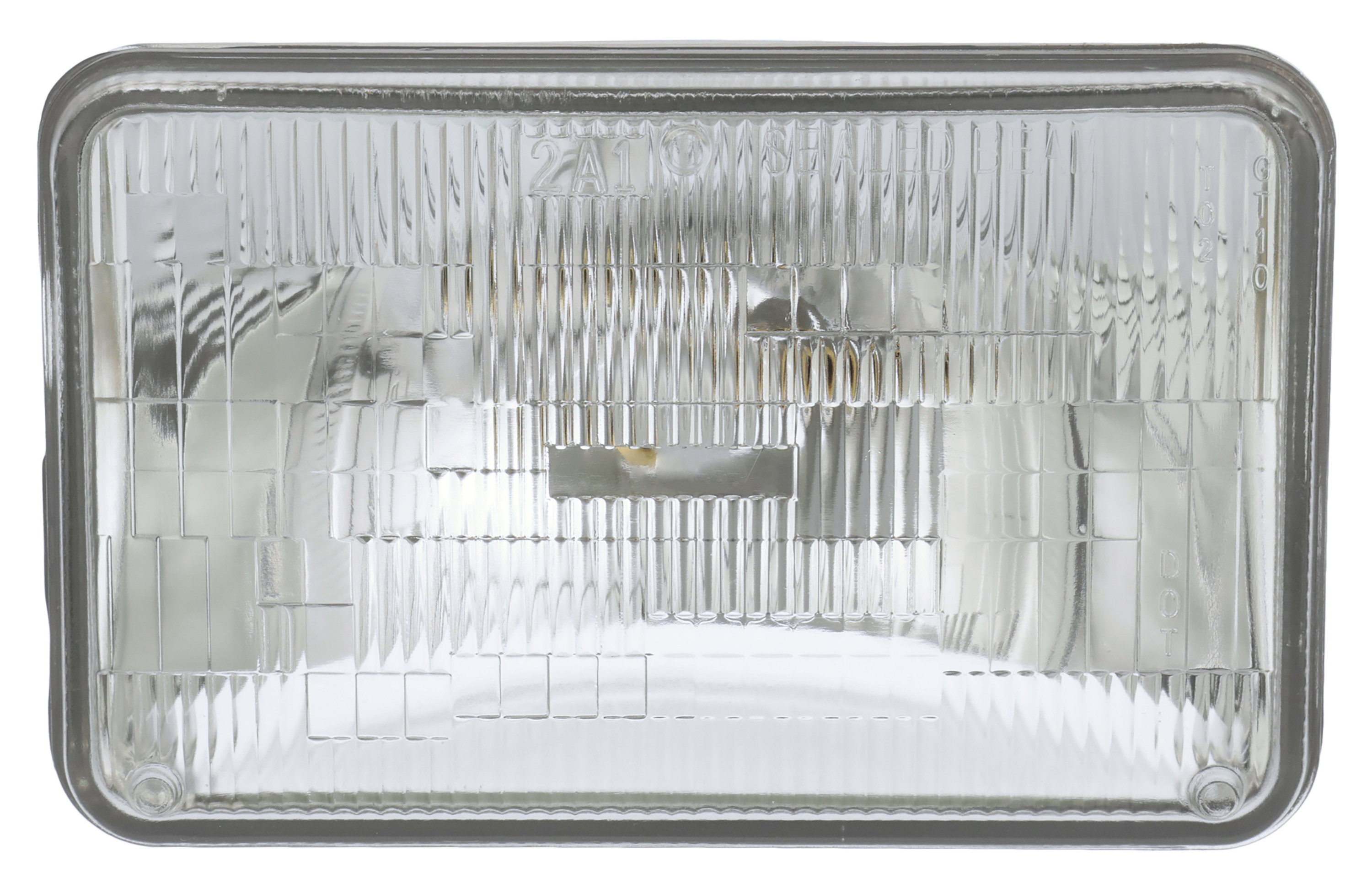

ABP N54B H4656	12.8V 35/35W 100X165MM 3 LUGS(SEALED BEA	PLC H4656C1

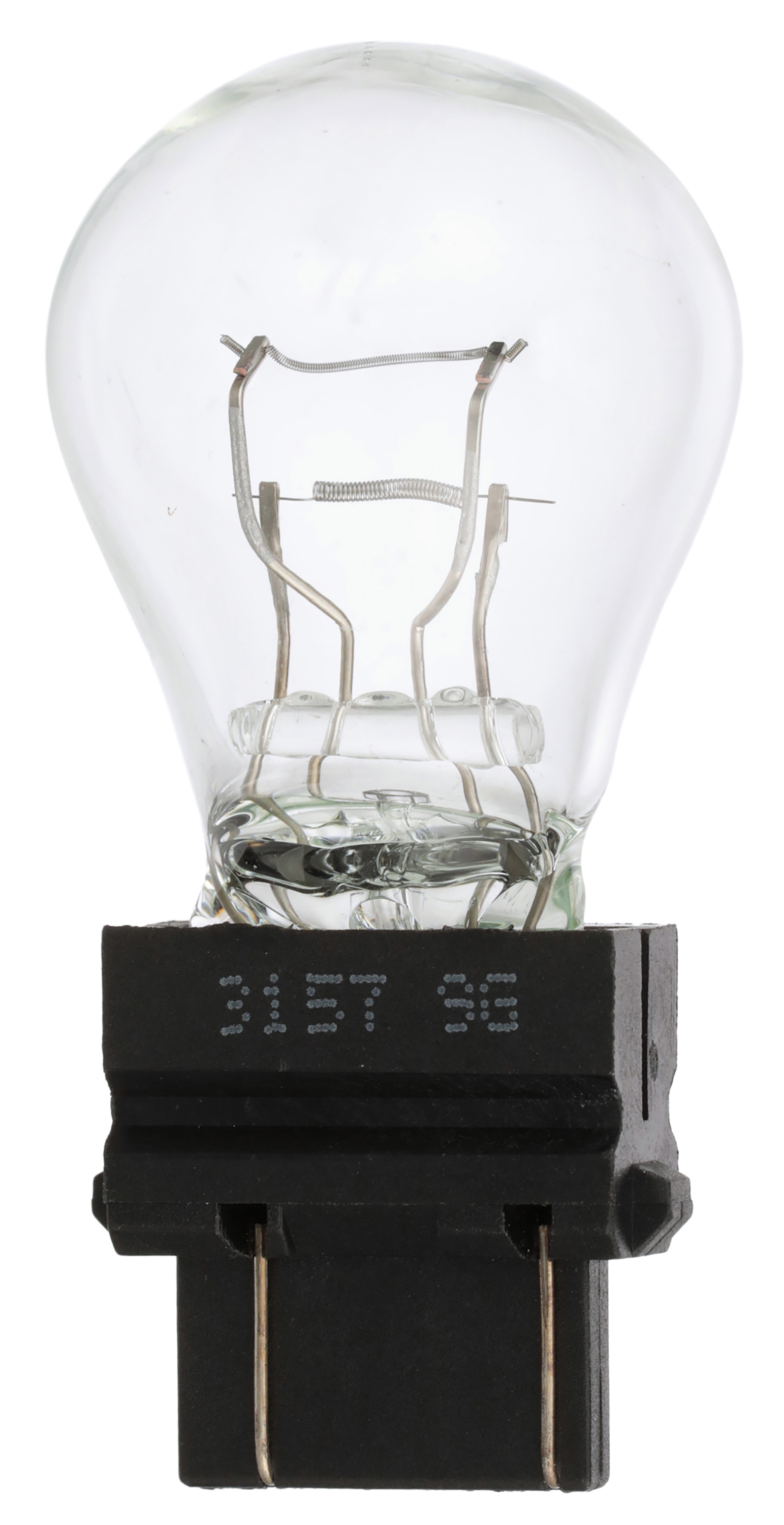

ABP N54B 3157	12.8/14V 2.1/0.59A S-8 POLYMER WB(MINIAT	PLC 3157CP
ABP N54B 9003	12V 60/55W HB2 T-5 P43T-38 BASE(HEADLAMP	PLC 9003C1
ABP N54B 9005XSLL	12.8V 65W STRAIGHT XS BASE LONG LIFE(HEA	SYL 9005XSLL
ABP N54B H4651	12.8V 50W 100 X 165MM 2 LUGS(SEALED BEA	PLC H4651C1
ABP N54B 1156	12.8V 2.1A S-8 SC BAYONET (BA15S)(MINI	PLC 1156CP
ABP N54B 898	12.8V 37.5W 2.93A T3-1/4 RIGHT A. PF(HEA	PLC 898B1
ABP N54B 9006	12.8V 55W HB4 LOW BEAM(HEADLAMP)	PLC 9006C1
ABP N54B H7	12V 55W H7 T4-5/8 PX26D BASE(HEADLAMP)	PLC 12972C1
ABP N54B H6024	12.8V 65/35W PAR56 3 LUGS(SEALED BEAM)	PLC H6024C1
ABP N54B H4656LL	12.8V 40/55W 100X165MM 3 LUGS LL(SEALE	PLC H4656LLC1
ABP N54B 896	12.8V 37.5W T3-1/4 RIGHT A. PREFOCUS(HEA	PLC 896B1

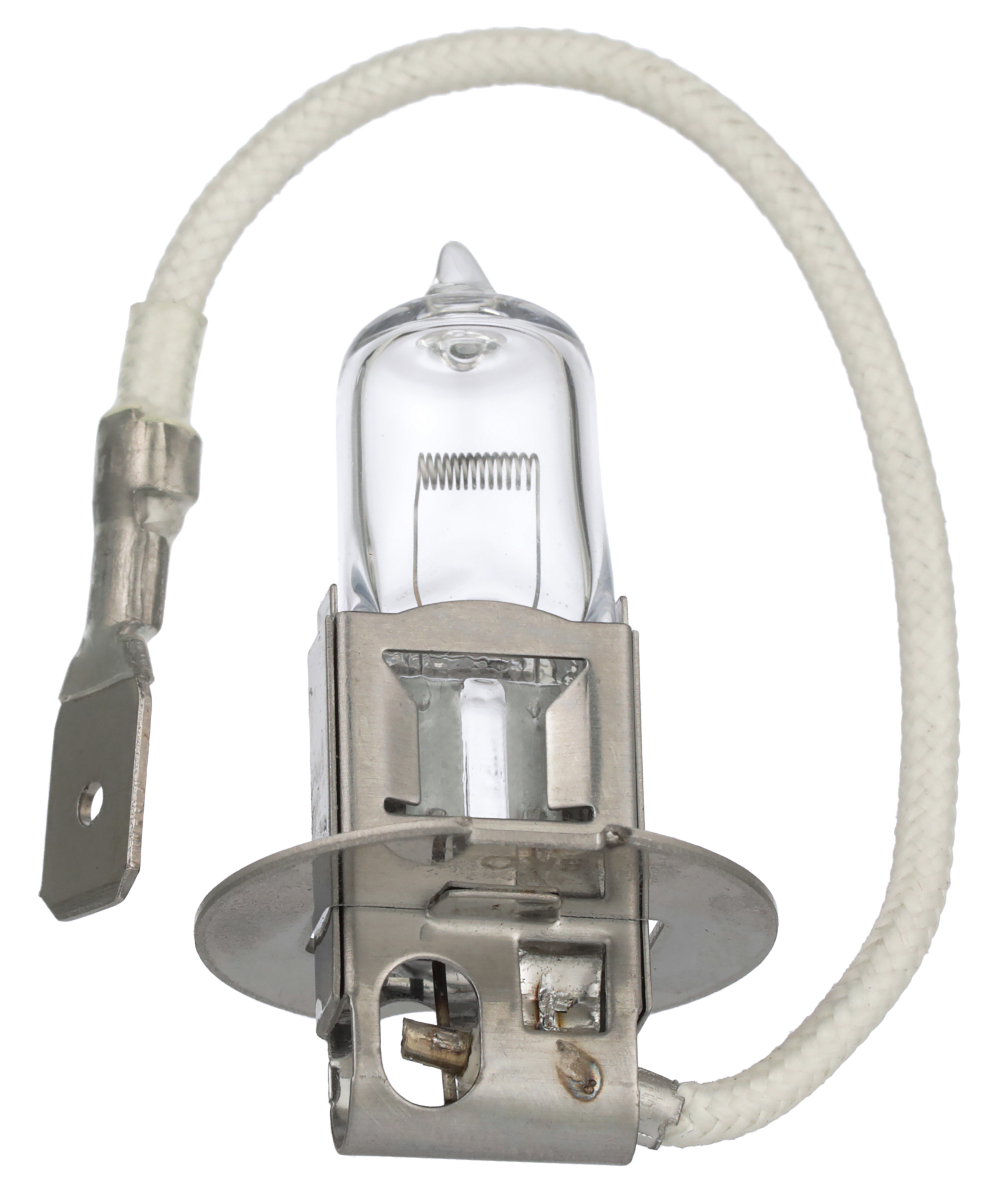

ABP N54B H3 55W	12V 55W H3 T3-1/2 PK22S BASE(HEADLAMP)	PLC 12336B1
ABP N54B H9421	12.8V 50W 92X150 SB(SEALED BEAM)	PLC H9421C1
ABP N54B 4411	12.8V 35W PAR 36 2 MP SLIP-ON/SCREW(SEAL	GE 4411 3
ABP N54B 3157NALL	12.8/14V 2.1/.59A S-8 POLYMER LL (MINIAT	SYL 3157NALL

Alliance vehicle Lighting products are reliable, long lasting and reduce maintenance cost due to burn outs

Produce increased light output that meets or exceeds OE specifications for enhanced vision

All products are 100% tested at the factory before shipped
Our Lighting products meet or exceed DOT, SAE and ANSI industry requirements
All bulbs are ROHS Compliant
Produce at IATF16949 certified facilities

Availability Information

Available throughout the DTNA PDC network in US and Canada
