About Alcoa® Wheels

The Alcoa® Wheels Advantage

Industry best five-year limited warranty.



+ Best in Class Warranty

+ Easy Claim Process

+ Cause Investigation & Prevention

Alcoa® Wheels is the trusted global leader and inventor of the forged aluminum wheel.  Our experts are dedicated to designing, engineering and manufacturing solutions that set the standard for: weight reduction, ease of maintenance, finish options, surface treatments, accessibility and appearance, and field service.

The only choice to get the job done right.



+ Most advanced and highest quality finishes

+ Largest hand holes in industry for ease of valve stem access

+ Easier, faster, and safer maintenance

Preventative maintenance friendly.



+ Hub bore technology

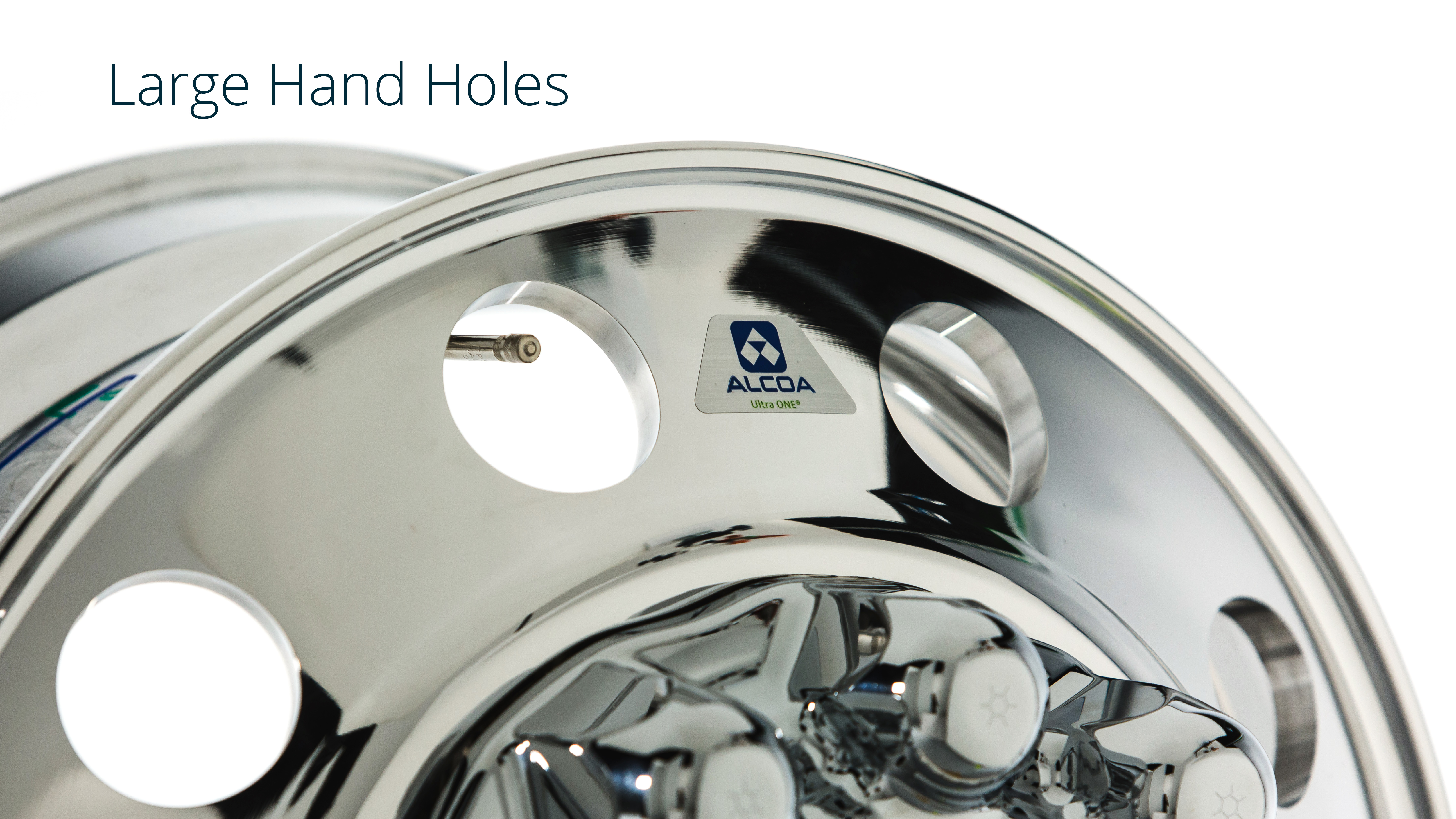

+ Large hand holes

+ Heat indicator

+ No chips, crack, peeling or rust

The podcast hosts talk about heavy truck and medium duty axle ends. Mason, Walters and Yagley bring close to 100 years of experience and expertise in the transportation business. Each month listeners will learn something new on the topic of axle ends.

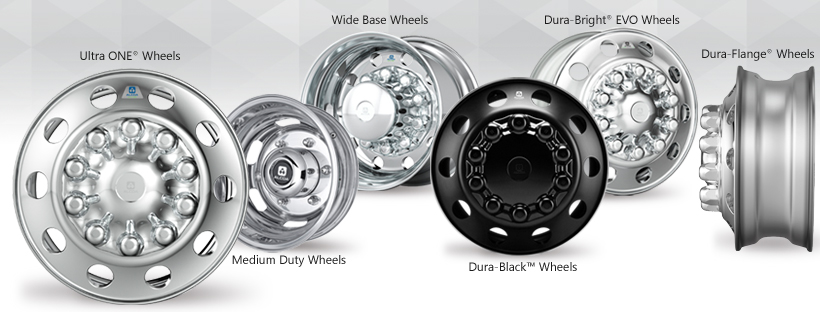

Product Highlights

Ultra ONE® and LvL ONE® Wheels



+ The lightest wheels on the market
+ Classic look with large hand holes
+ New patent pending Hub Bore Technology

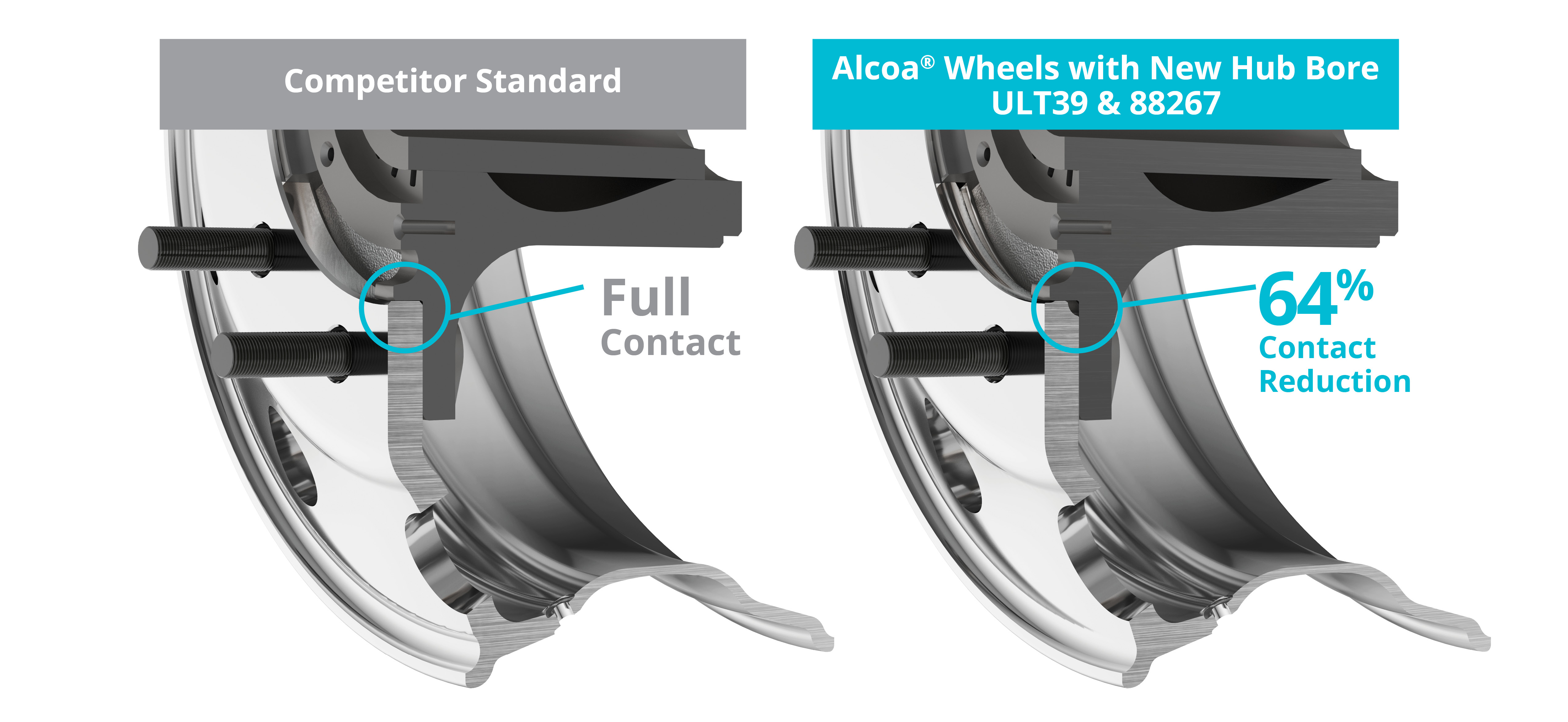

Hub Bore Technology



+ Reduces the hub-to-wheel contact area by up to 64% versus other aluminum wheels on the market, leaving less surface area for corrosion to form.

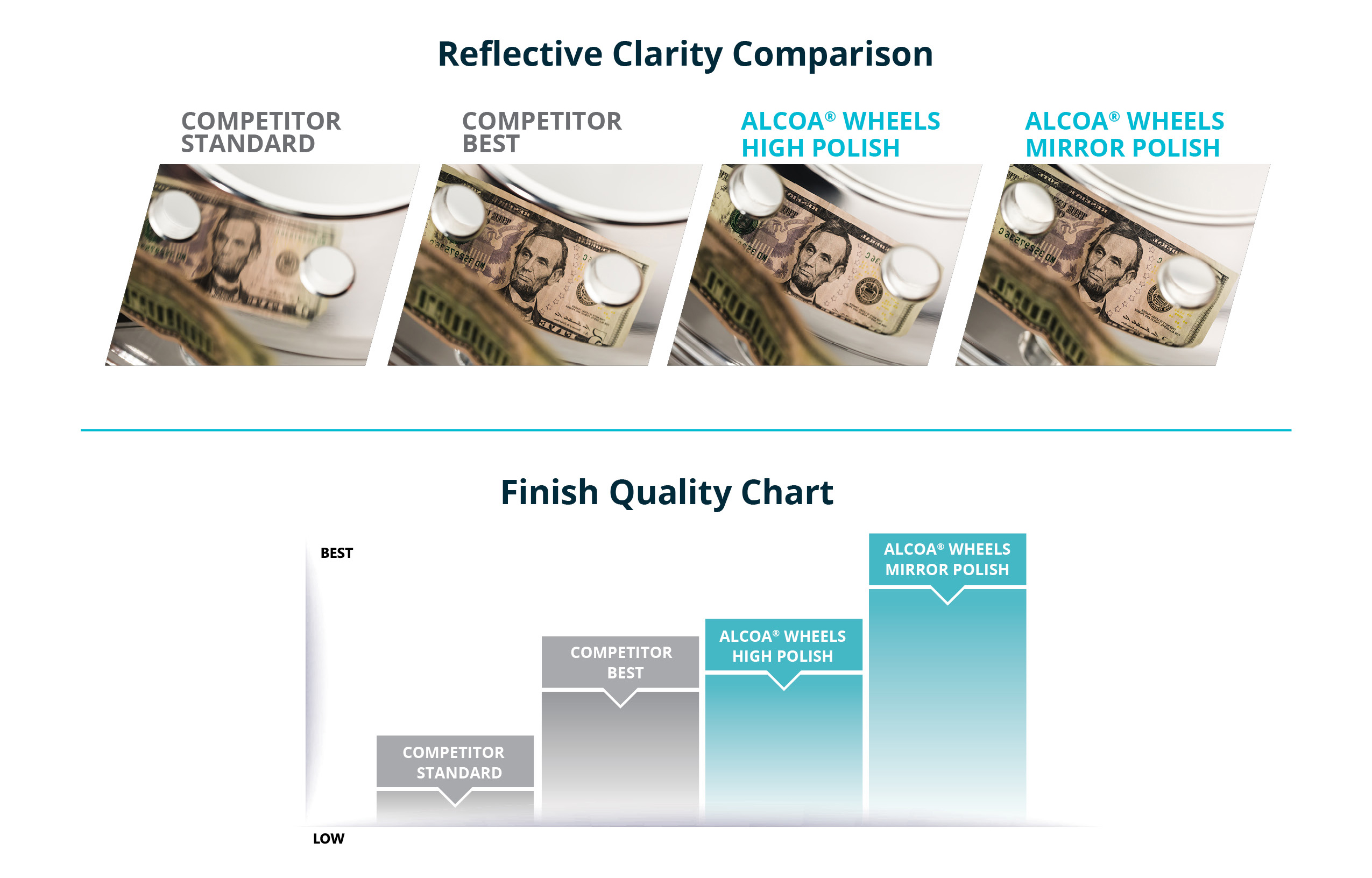

Advanced Finishes



High Polish

+ Its reflective finish and high gloss levels give the wheel an appearance that redefines the standard in wheel finishes
+ Designated by 7 or 8 in the 6th digit of the part number

Mirror Polish

+ The premium wheel with highest level of gloss and reflectivity on the market
+ Designated by 1, 2, or 3 in the 6th digit of the part number

Proprietary Surface Treatments



Dura-Bright®

+ Surface that cleans easily with soap and water without the need to polish
+ Designated by a DB after the finish option

Dura-Flange®

+ Rim-flange treatment that minimizes flange wear
+ Best for logging, tankers, city buses, motor coaches, or any application involving shifting loads
+ Designated by a DF after the finish option

Dura-Bright® + Dura-Flange®

+ Both Dura-Bright® and Dura-Flange® on the same wheel for maximum protection
+ Designated by a DD after the finish option

Dura-Black™

+ Same benefits of all lightweight Alcoa aluminum wheels, now in Menacing Matte Black
+ Designated by a BLK after the finish option

Top Movers - (Insert Product Name)

Part NumberDimensionApprox WeightMax LoadSurface Option
ALU ULT39722.5 x 8.25397,400High Polish on both sides as applicable
ALU ULT39122.5 x 8.25397,400Mirror Polish Outside Only
ALU ULT39222.5 x 8.25397,400Mirror Polish Inside Only
ALU ULT39BLK22.5 x 8.25397,400Dura-Black Surface Treatment on both sides as applicable
ALU ULT390DB22.5 x 8.25397,400Brush Finish on both sides as applicable, , Dura-Bright Surface Treatment
ALU ULT391DB22.5 x 8.25397,400Mirror Polish Outside Only, Dura-Bright Surface Treatment
ALU ULT392DB22.5 x 8.25397,400Mirror Polish Inside Only, Dura-Bright Surface Treatment
ALU 88267722.5 x 8.25427,400High Polish on both sides as applicable
ALU 88267122.5 x 8.25427,400Mirror Polish Outside Only
ALU 88267322.5 x 8.25427,400Mirro Polish Inside & Outside
ALU 88267222.5 x 8.25427,400Mirror Polish Inside Only
ALU 882672DB22.5 x 8.25427,400Mirror Polish Inside Only, Dura-Bright Surface Treatment
ALU 882671DB22.5 x 8.25427,400Mirror Polish Outside Only, Dura-Bright Surface Treatment
ALU 882670DB22.5 x 8.25427,400Brush Finish on both sides as applicable, , Dura-Bright Surface Treatment
ALU 882673DB22.5 x 8.25427,400Mirror Polish Inside & Outside, Dura-Bright Surface Treatment
ALU 98U63124.5 x 8.25517,400Mirror Polish Outside Only
ALU 98U63224.5 x 8.25517,400Mirror Polish Inside Only
ALU 98U63724.5 x 8.25517,400High Polish on both sides as applicable
ALU 98U63BLK24.5 x 8.25517,400Dura-Black Surface Treatment on both sides as applicable
ALU 98U630DB24.5 x 8.25517,400Brush Finish on both sides as applicable, , Dura-Bright Surface Treatment
ALU 98U631DB24.5 x 8.25517,400Mirror Polish Outside Only, Dura-Bright Surface Treatment
ALU 98U632DB24.5 x 8.25517,400Mirror Polish Inside Only, Dura-Bright Surface Treatment
ALU 89U63722.5 x 94810,000High Polish on both sides as applicable
ALU 89U63122.5 x 94810,000Mirror Polish Outside Only
ALU 89U631DB22.5 x 94810,000Mirror Polish Outside Only, Dura-Bright Surface Treatment
ALU 001812Nut Heights .886� - 1.0�10 pkChromeHug-A-Lug� Two-Piece Nut Covers for 33mm Hex Flange Nuts (Hub-Pilot Wheels)
ALU 001811Nut Heights .886� - 1.0�singleChromeHug-A-Lug� Two-Piece Nut Covers for 33mm Hex Flange Nuts (Hub-Pilot Wheels)
ALU 087100SHub PilotedChromeOne-Piece Hub Cover System for 10-Hole, 285.75mm, 22.5� and 24.5� Wheels

Frequently Asked Questions

Call 1-800-242-9898 and press “Option 1”. You will be transferred to our Wheel Returns Department. A representative will ask you the following questions:

  • Customer name
  • Part number of the wheel
  • Date of manufacture
  • Type of complaint (examples: bolt hole crack, hand hole crack, valve hole crack, bolt hole to hand hole crack, etc.)
  • End-user (if applicable)

Submit Warranty Claim online.

You can access the complete Alcoa aluminum wheels product portfolio here:

Warranty Information

Last updated: Tuesday, 09 June 2020 02:23 PM
