Crossing Arms - Electric

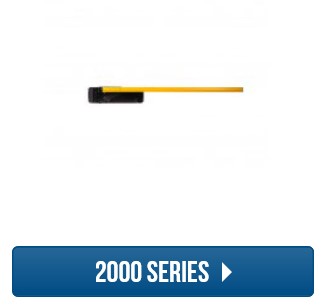

Crossing Arms - Air

The 200 series air operated cross arm is designed with simplicity in mind, with very few moving parts and simple air diaphragm which makes this unit virtually trouble free.
Constructed from steel that is properly coated for corrosion resistance.
Extruded high strength plastic arm.
Mounting brackets available to further secure stowing into the bumper.
Easy Serviceablility.

The 7 series Solid State electrically operated cross arm is designed with simplicity in mind. It has fewer moving parts and is constructed from die cast steel that is properly coated for corrosion resistance. Exterior metallic parts are powder coated and e-coated for added corrosion resistance.
Sealed solid state mechanism with no micro switches or relays.
Extruded high strength plastic arm.
Mounting brackets available for all chassis configurations.
Optional electromagnet available to further secure stowing into the bumper.
Internal Grounding.
Available with quick disconnect.
Easy Serviceability.

Material No	Material Description
SMA 068177	FIBERGLASS ROD ASM
SMA 78114	CROSSARM BASE ASM
TBB 176859	CROSSING ARM BASE ASM ELEC
SMA 78106	7 SERIES CROSSING ARM BASE
SMA 28158	ARM-HINGE, AIR X/A C2 PTD YELLOW
SMA 28114	CROSSING ARM BASE ASSEMBLY AIR
TBB 197025	STOW BRACKET, C2
SMA 28112	ASSY X/A BASE AIR
SMA 68150	ASSY YELLOW POLYROD W/
SMA 28115C	KIT INT. X-ARM AIR BASE C2
TNI 4462 001	POLE CROSS ARM 67.5
SMA 002166	HINGE X/A AIR INTEGRATED
TBB 186119	CROSSING ARM ROD ASM CURVED YELLOW POLY
SMA 68151	ASSY YELLOW POLYROD W/
SMA 68196	ASSY, POLY ROD, INT X/A
TBB 186118	CROSSING ARM BASE ASM ELEC HDX EFX
SMA 68152	ASSY YELLOW POLYROD W/
TBB 168220	CROSSING ARM CURVED,YELLOW POLYCARBONATE
