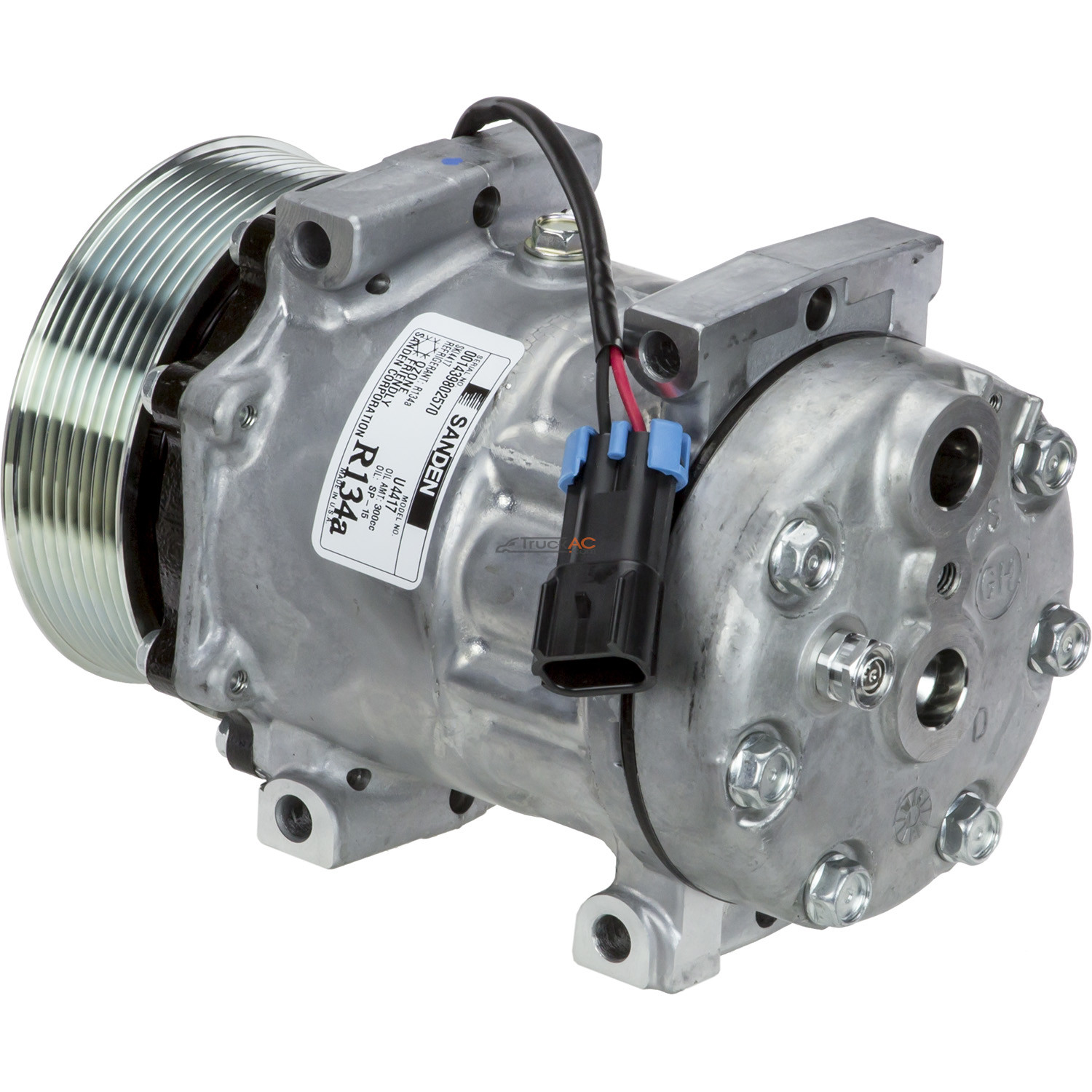

Sanden AC Compressors

Sanden manufactures high quality, durable air conditioning compressors for a variety of vehicles and applications. Sanden has a wide range of compressor configurations and compression technologies to satisfy a variety of cooling requirements.

Product Highlights

PX SERIES COMPRESSORS

Sanden's next generation swash plate compressor. PX compressors are durable at higher speeds, have lower noise vibration harshness (NVH), and are variably controlled for maximum environmental benefit.

  • External and internal control - 6 & 7 pistons
  • Internal control type uses pressure valve to regulate compressor displacement
  • External control type varies compressor displacement without using an electromagnetic clutch

SDV SERIES COMPRESSORS

Sanden's fixed displacement "wobble plate" compressors. Models are available in fixed and variable displacement types.

  • Variable displacement - 6 and 7 piston models
  • Displacement can be varied from 5% - 100% for maximum efficiency
  • Displacement internally controlled by pressure valve

SD7 SERIES

  • Fixed Displacement - 7 Pistons
  • Direct & Ear Mounts Available
  • Variety of Clutch Configurations
  • Flexible Porting Options

SD5 SERIES

  • Fixed Displacement - 5 Pistons
  • Ear Mount
  • Various Clutch & Porting Options
  • Small displacement models available for compact vehicles

SUPER HEAVY DUTY SD7

  • drawing on our extensive experience in the global heavy truck industry, Sanden has developed the Super Heavy Duty or "SHD" specifically for use in the most severe application environments.
  • The SHD features many new or revised components compared to our current SD7H15 compressor, all of which have been designed to provide longer service life with no loss of cooling performance.
  • Mounting features and outer diameter of compressor body are the same as SD7H15

Top Movers - Sanden AC Compressors

Part NumberDescription
SKI 4108UCOMP-AC, REFRIGERANT, HDEP
SKI 4314AFCOMP-AC, RFGT,8PK,SHD,SIDE MSO
SKI 4307UCOMP-AC, HD, SD7 DIR LONG MNT,
SKI 4885UCOMP-AC, HD, SD7 DIR LONG MNT
SKI 4082COMP-AC, SUPER HD, SD7 DIR SHR
SKI 4808COMPRESSOR-CLUTCH ASSEMBLY
SKI 4822AFCOMP-AC, HD, SD7 DIR LONG MNT,
SKI 4025SCOMP-AC, SUPER HD, SD7 DIR LON
SKI 4113UCOMP-AC, HD, SD7 DIR LONG MNT
SKI 4417 9931CLUTCH ASSY
SKI 7731 9931CLUTCH-AC, ASSY
SKI 4368 9931CLUTCH KIT - SHD COMPRESSOR
SKI 4603 9910COMPRESSOR ONLY
SKI 4802 9931SANDEN CLUTCH KIT, HDEP
SKI 4376 9931CLUTCH KIT - SHD COMPRESSOR
SKI 4885 9931CLUTCH ASSY 8 GROOVE
SKI 4427 9931CLUTCH ASSY
SKI 4424 9931CLUTCH ASSY
SKI 4428 9931CLUTCH ASSY
SKI 4370 9931CLUTCH
SKI 4369 9931CLUTCH KIT - SHD COMPRESSOR
SKI 4601 9931CLUTCH

Product Chart

SeriesFamilyMin. DisplacementMax. DisplacementMax. SpeedDisplacement Control Type
PXPXE133.8cc127.1cc9200 RPMExternal Control
PXPXE164.9cc163cc8500 RPMExternal Control
PXPXV164.9cc163cc8500 RPMInternal Control
SDVSD7V168.1cc161.3cc8000 RPM.NA
SDVSD6V126.2cc125cc8000 RPMNA
SD7SD7H15154.7cc154.7cc6000 RPMNA
SD7SD7H13129cc129cc6000 RPMNA
SD7SD7B10100cc100cc6000 RPMNA
SD5SD5H14138cc138cc6000 RPMNA
SD5SD5H11108cc108cc6000 RPMNA
SD5SD5H0989cc89cc6000 RPMNA

Warranty Information

Restricted Content

Dealer Pricing & Availability

90 days from the purchase date

Visit the warranty section on Sanden's website for more information.



Availability information

  • Available in the PDCs
