Alliance Air Disc Brake Calipers

Air Disc Brake Calipers Features & Benefits

Key Product Features & Benefits

Features

Benefits

Every unit is remanufactured to OE specs, making it better than rebuilt, and more cost effective than OE

Allows for significant cost savings over OE new calipers.

Components are cleaned, inspected, and treated with rust preventative coating

Enables extended rust-free operation and improved overall product life.

Every caliper is tested utilizing OE brake system analyzers

Ensures uniform operation of moving components to provide enhanced quality, superior performance, and reduced maintenance.

All rubber components, bushings, and guide pins are replaced with 100% new OE quality equivalents

Prevents premature failure due to eroding.

Castings are coated with premium coating and baked at 400 degrees

Provides corrosion protection in harsh operating environments and improves visual appearance.

Heavy Duty Stopping Power

  • Every unit is remanufactured to OE specs, making it better than rebuilt, and more cost effective than OE
  • Components are cleaned, inspected, and treated with rust preventative coating
  • All rubber components, bushings, and guide pins are replaced with 100% new OE quality equivalents
  • Castings are coated with a premium protective coating to provide corrosion protection in harsh environments

Coverage of All Applications

  • Trucks
  • Trailers
  • Transit Buses
  • Motor Coaches
  • Fire Trucks
  • Waste

Heavy Duty Braking Options

  • Designed for performance in extreme conditions
  • Lighter weight
  • Internal cooling due to increased air flow
  • Shorter stopping distance
  • Elimination of Brake Fade
  • Longer service life of friction material
  • Reduced potential for Compliance, Safety, Accountability (CSA) violations

Alliance Parts Air Disc Brake Caliper Flyer

Alliance Air Disc Brake Calipers Training Guide

Cross References

Alliance Part NumberDescriptionBendixWabcoMeritorCurrent DTNA Sourced PN
ABP N42A H55717CALIPER HYD RX BX 66MM 2P UBLD55717ASL 4153172
ABP N42A H55849CALIPER HYD RX BO 66MM 2P UBLD55849ASL 0204719661
ABP N42A H55850CALIPER HYD RX BX 73MM 2P UBLD55850ASL 0204774999
ABP N42A AK081256CALIPER AIR RX BX ADB22X VTL A/RK021299;K081256;K147136;K109957;K097846;K109957X;K097846SCBW K081256
ABP N42A AK081257CALIPER AIR RX BX ADB22X VTL B/LK021300;K081257;K147135;K109958;K097847;K109958X;K097847SCBW K081257; BW K021300
ABP N42A AK081142CALIPER AIR RX BX ADB22X AXL A/RK081142;802090;K109961X;K109961;K097850SC;K147430;K097850BW K081142
ABP N42A AK081143CALIPER AIR RX BX ADB22X AXL B/LK081143;802091;K109962X;K109962;K097851SC;K147429;K097851BW K081143
ABP N42A H50482CALIPER HYD RX MR 70MM 4P RBLD60450482TDA 60450482
ABP N42A H50483CALIPER HYD RX MR 70MM 4P LBLD60450483TDA 60450483
ABP N42A AK081258CALIPER AIR RX BX ADB22X A/RK081258;K019174;K097844;K097844SC;K109959;K109959X;K097848BW K081258
ABP N42A AK081259CALIPER AIR RX BX ADB22X B/LK081259;K019175;K097845;K097845SC;K109960;K109960X;K097849BW K081259
ABP N42A H55313CALIPER HYD RX BX 66MM 2P RBLD55313BW 055313
ABP N42A H50145CALIPER HYD RX MR 73MM 2P UBLD60050145TDA 60050145X
ABP N42A H50150CALIPER HYD RX MR 63MM 2P UBLD60050150TDA 60050150X
ABP N42A H55250CALIPER HYD RX BX 73MM 2P UBLD55250BW 055250
ABP N42A A225H202CALIPER AIR RX MR EX225H2 LEX225H202;EX225H202XX000;EX225H202RTDA EX225H202XX000
ABP N42A H55656CALIPER HYD RX BX 73MM 2P UBLD55656BW R55656
ABP N42A A225H201CALIPER AIR RX MR EX225H2 REX225H201;EX225H201XX000;EX225H201RTDA EX225H201XX000
ABP N42A H50478CALIPER HYD RX MR 70MM 4P RBLD60450478TDA 60450478
ABP N42A H50479CALIPER HYD RX MR 70MM 4P LBLD60450479TDA 60450479
ABP N42A H55098CALIPER HYD RX MR 70MM 4P RBLD55098ASL 4152351
ABP N42A H55099CALIPER HYD RX MR 70MM 4P LBLD55099ASL 4152352
ABP N42A A225H301CALIPER AIR RX MR EX225H3EX225H301XX000TDA EX225H301XX000
ABP N42A A3220650CALIPER AIR RX WB MAXXUS L6403220650;6403220500WAB 640 322 065 0
ABP N42A A3220660CALIPER AIR RX WB MAXXUS R6403220660;6403220510WAB 640 322 066 0
ABP N42A A225H302CALIPER AIR RX MR EX225H3EX225H302XX000TDA EX225H302XX000
ABP N42A AK003803CALIPER AIR RX BX SN7 BLK003803;SN7203RCBW K003803
ABP N42A AK003804CALIPER AIR RX BX SN7 ARK003804;SN7213RCBW K003804
ABP N42A AK021991CALIPER AIR RX BX SN7 B/LK0108187;K021991;K003810;SN7216;SN7107BW K021991
ABP N42A AK021992CALIPER AIR RX BX SN7 A/RK0108188;K021992;K003809;SN7206;SN7117BW K021992

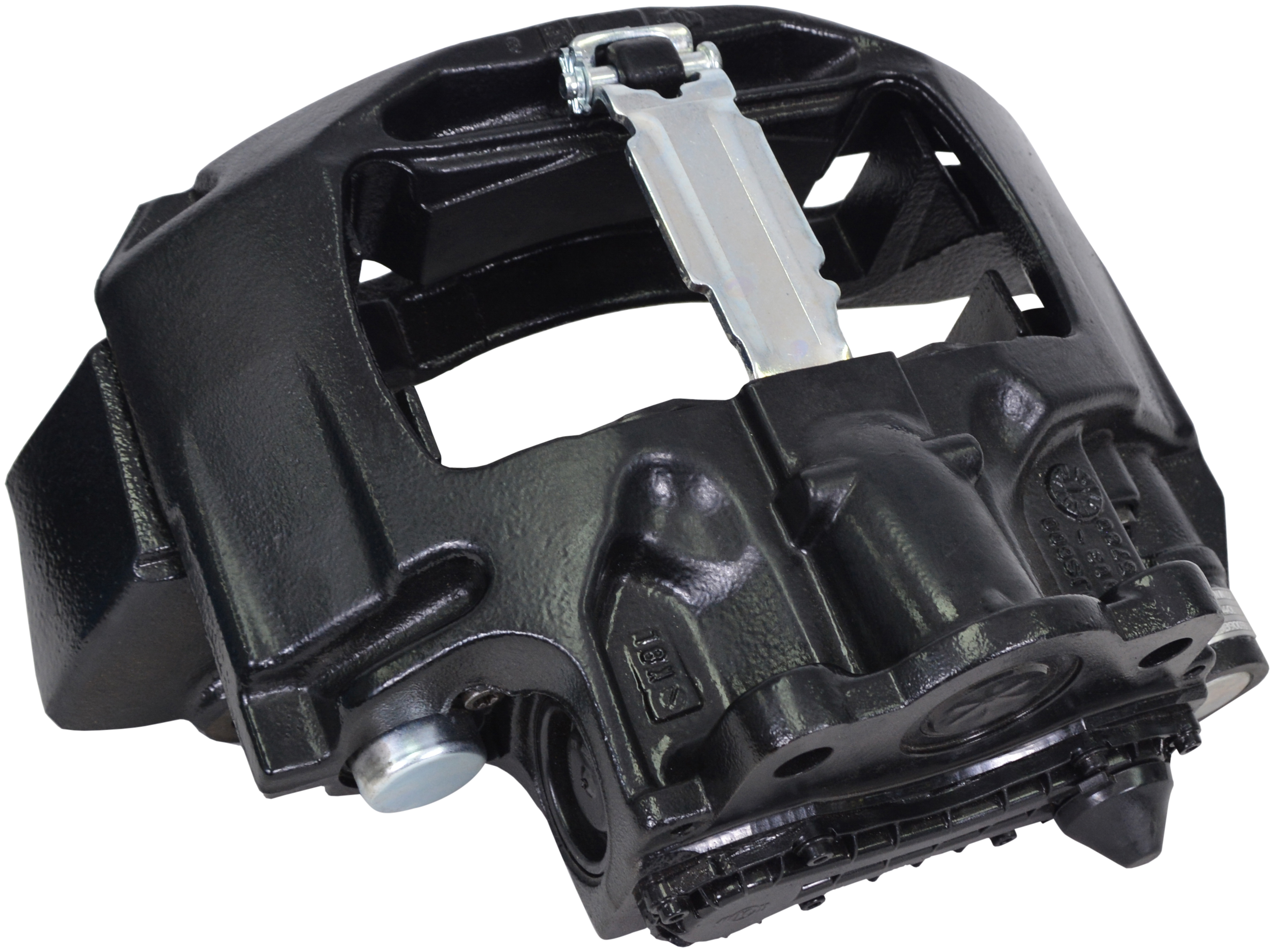

ABP N42A AK149714CALIPER AIR RX BX ADB22X SAF A/RK113887X;802984;K113887;K149714BW K149714
ABP N42A AK149715CALIPER AIR RX BX ADB22X SAF B/LK113888X;802985;K113888;K149715BW K149715
ABP N42A AK019180CALIPER AIR RX BX ADB22X NBKT A/RK019180;K098272BW K019180
ABP N42A AK019181CALIPER AIR RX BX ADB22X NBKT B/LK019181;K098273BW K019181
ABP N42A H50476CALIPER HYD RX MR 64MM 4P RBLD60450476TDA 60450476
ABP N42A H50477CALIPER HYD RX MR 64MM 4P LBLD60450477TDA 60450477
ABP N42A A225L201CALIPER AIR RX MR EX225L2EX225L201XX000TDA EX225L201XX000
ABP N42A A225L202CALIPER AIR RX MR EX225L2EX225L201XX000TDA EX225L202XX000
ABP N42A AK002963CALIPER AIR RX BX SB7 AXL 93DG RK002963BW K002963
ABP N42A AK002964CALIPER AIR RX BX SB7 AXL 93DG LK002964BW K002964
ABP N42A A225L261CALIPER AIR MR EX225L261 LHEX225L261; EX225L261XX000
ABP N42A A225L262CALIPER AIR MR EX225L262 RH EX225L262; EX225L262XX000
ABP N42A AK012341CALIPER AIR BX SK7 RHK012341; K012633; 5400101100
ABP N42A AK012342CALIPER AIR BX SK7 LHK012342; K012634; 5400101200
ABP N42A AK069395CALIPER AIR BX ST7 RHK069395;K097530K50; 51830053
ABP N42A AK069396CALIPER AIR BX ST7 LHK069396; K097531K50; 51830052
ABP N42A A2250330CALIPER AIR WB PAN22 RH640 225 033 0; 40 225 016
ABP N42A A2250320CALIPER AIR WB PAN22 LH40 225 032 0; 40 225 015
ABP N42A A2250810CALIPER AIR WB PAN22 RH640 225 081; 640 225 037
ABP N42A A2250800CALIPER AIR WB PAN22 LH640 225 080; 640 225 036
ABP N42A A3220070CALIPER AIR WB MAXX22T LH640 322 007 0; S-35973-L
ABP N42A A3220080CALIPER AIR WB MAXX22T RH640 322 008 0; S-35973-R
